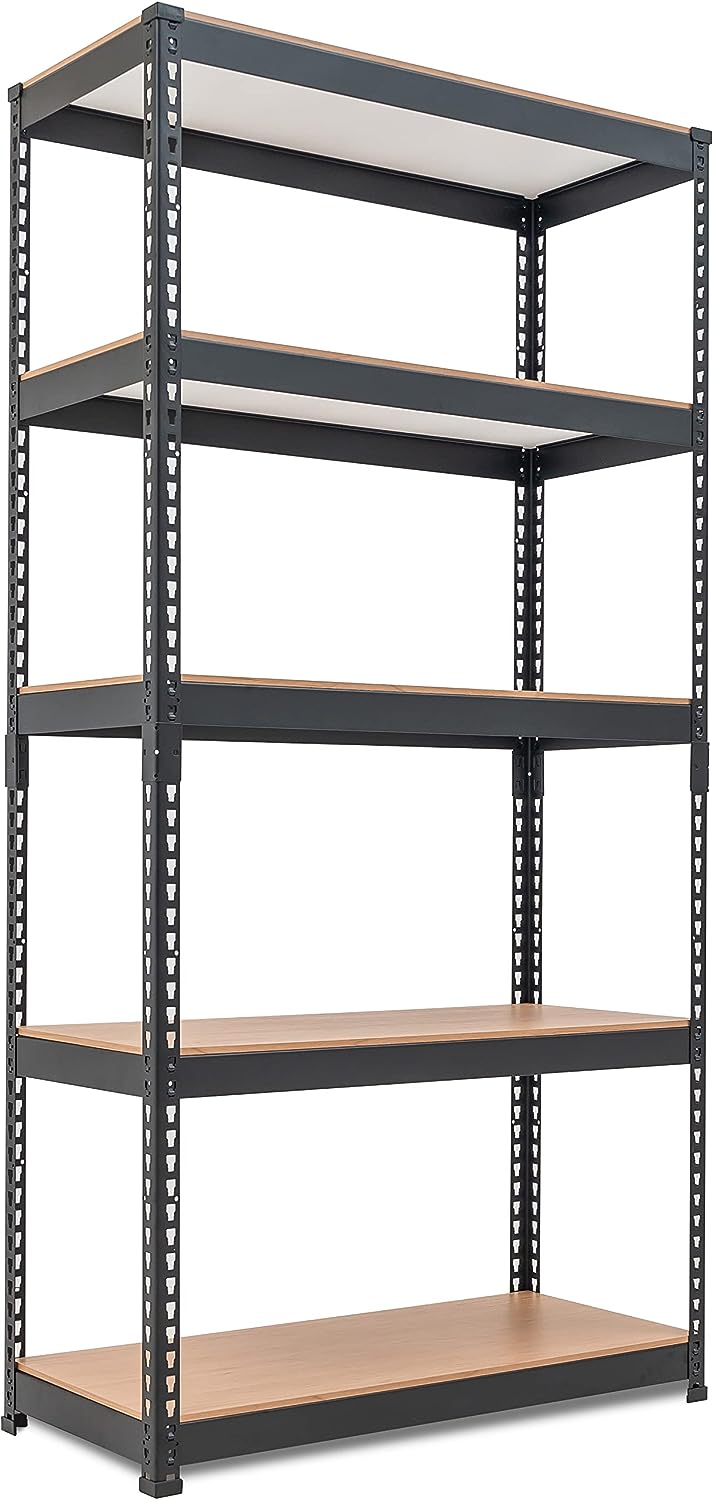

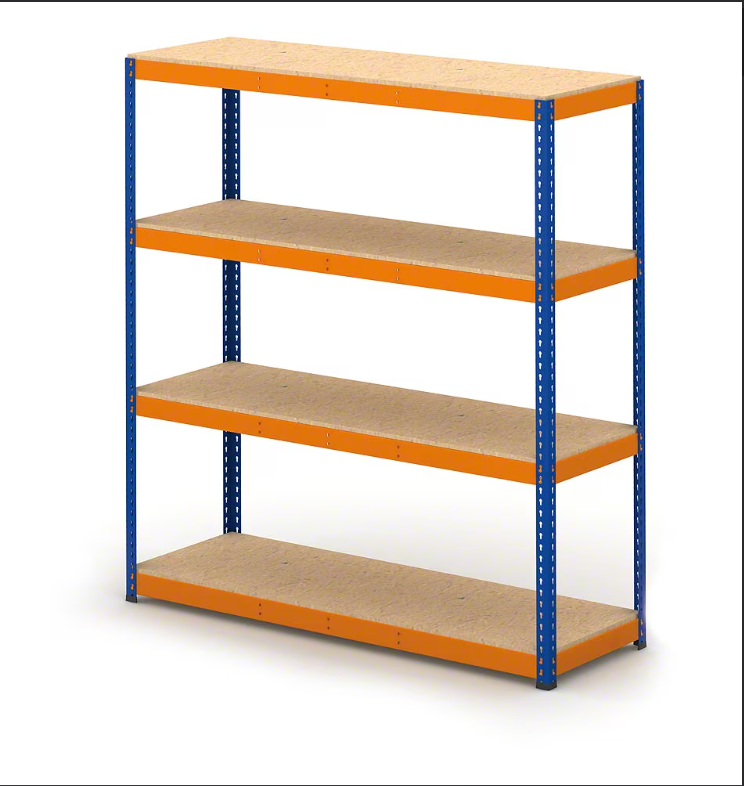

The Boltless Rivet Shelving System utilizes a rivet-clip connection mechanism to enable tool-free assembly. Designed for warehouses, industrial facilities, and commercial storage, this modular system supports adjustable shelf heights and high load capacities. The galvanized steel construction ensures durability in diverse environmental conditions.
Design Features
1.Tool-Free Assembly

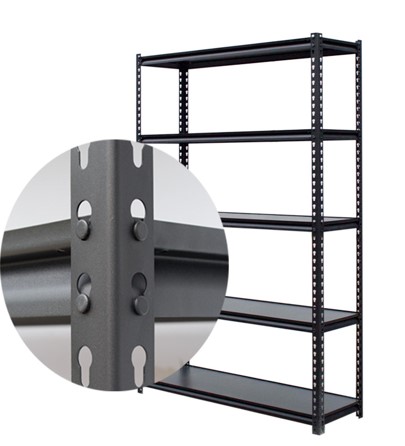

Rivet-clip connectors eliminate the need for bolts or tools.
Uprights and beams lock securely via manual pressure.
2.Modular Configuration
Supports 3–6 tiers or 4–8 tiers.
Compatible with optional accessories (e.g., cross braces, divider panels).
3.Corrosion Resistance
Hot-dip galvanized coating (minimum 80μm thickness) for humidity and chemical exposure.
4.Safety Compliance
Load capacity tested per EN 15620:2008 standards.
Baseplates include anti-slip rubber pads (5 mm thickness).
| Parameter | Standard ModelShelf Dimensions (L×W×H) |
| Shelf Dimensions (L×W×H) | 1220 mm × 610 mm × 1830 mm |
| Load Capacity | 300 kg per shelf |
| Material Thickness | 1.2 mm galvanized steel |
| Adjustable Height Increment | 25 mm intervals |
| Compliance Standards | ISO 9001 |
Assembly Steps

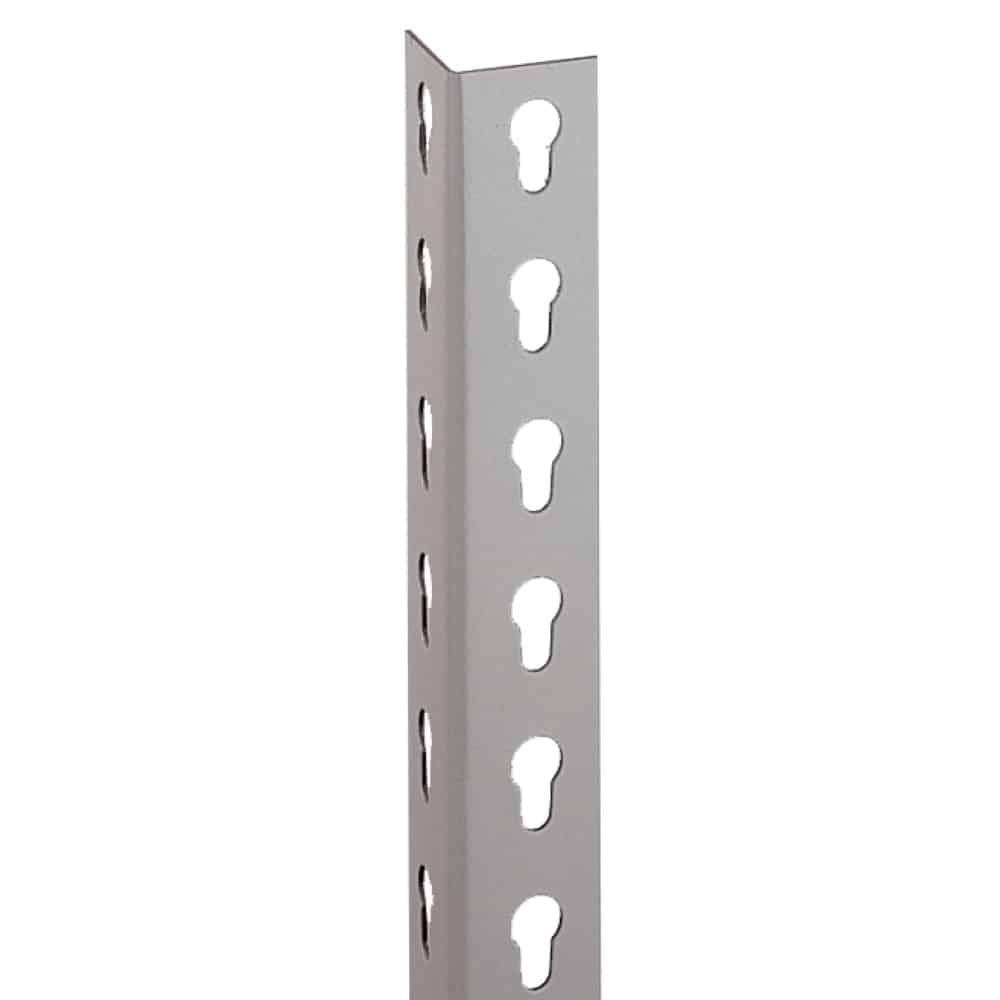

Unfold Uprights – Position vertical uprights and attach baseplates.
Snap-In Beams – Align rivet-clips with upright holes and press to lock.
Adjust Shelves – Set shelf height in 25mm increments and place decking.
