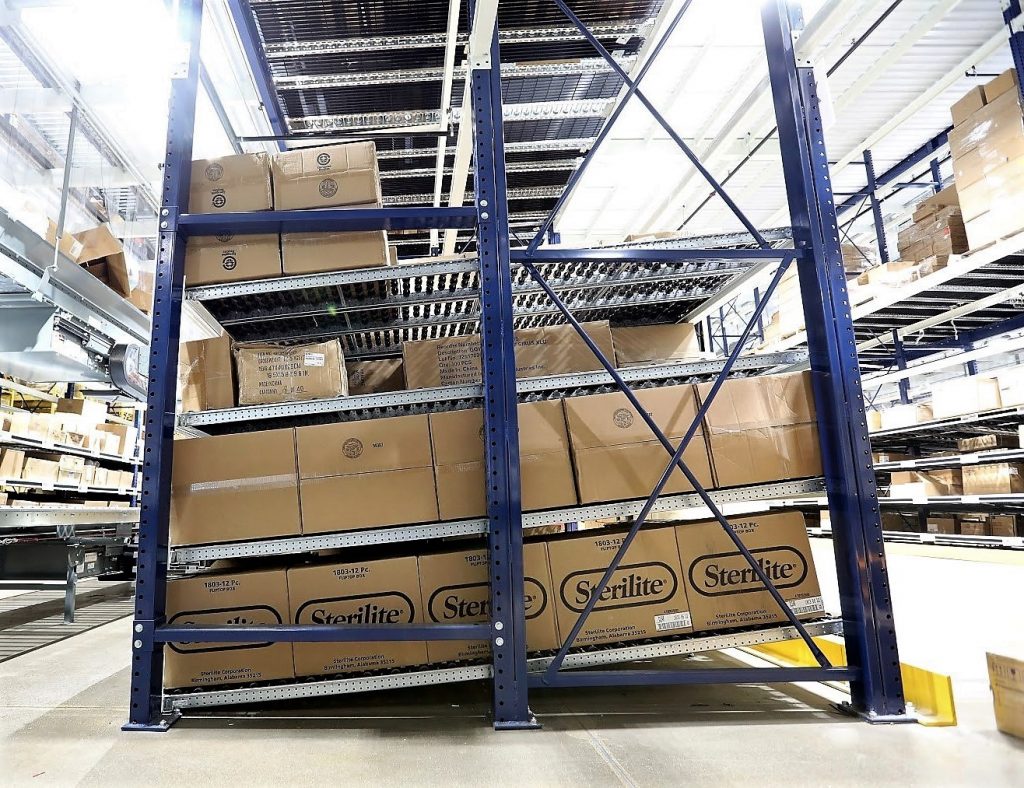

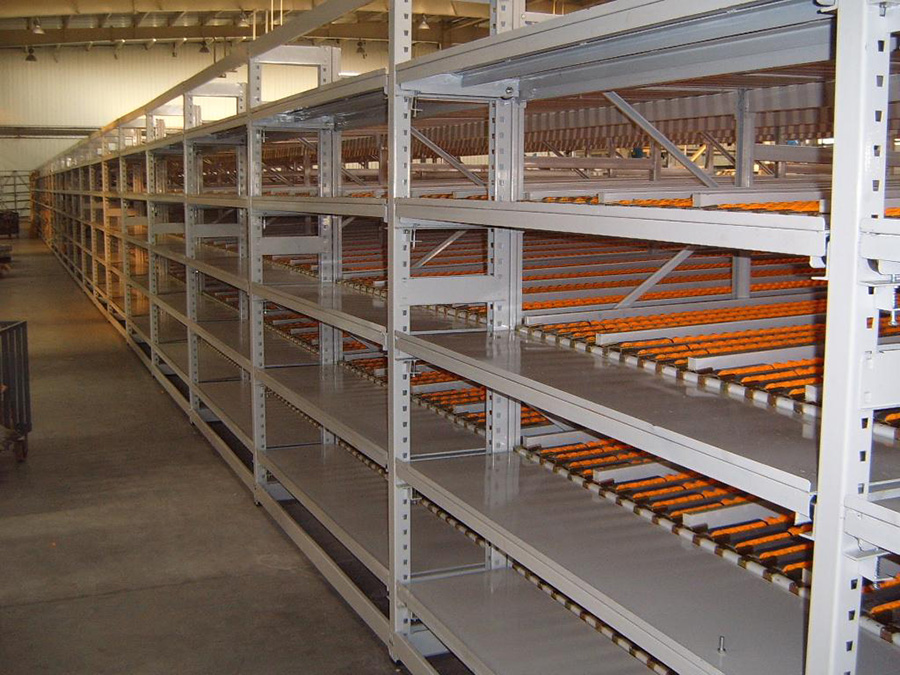

The Carton Flow Shelving System is a gravity-based, high-density storage solution designed for efficient handling of cartons, totes, and lightweight goods. Utilizing inclined roller tracks, this system enables automated forward movement of goods to the picking face, ensuring strict adherence to "First-In, First-Out" (FIFO) inventory management. Ideal for e-commerce fulfillment, pharmaceutical warehousing, and production line replenishment.
Key Features
Optimized Picking Efficiency

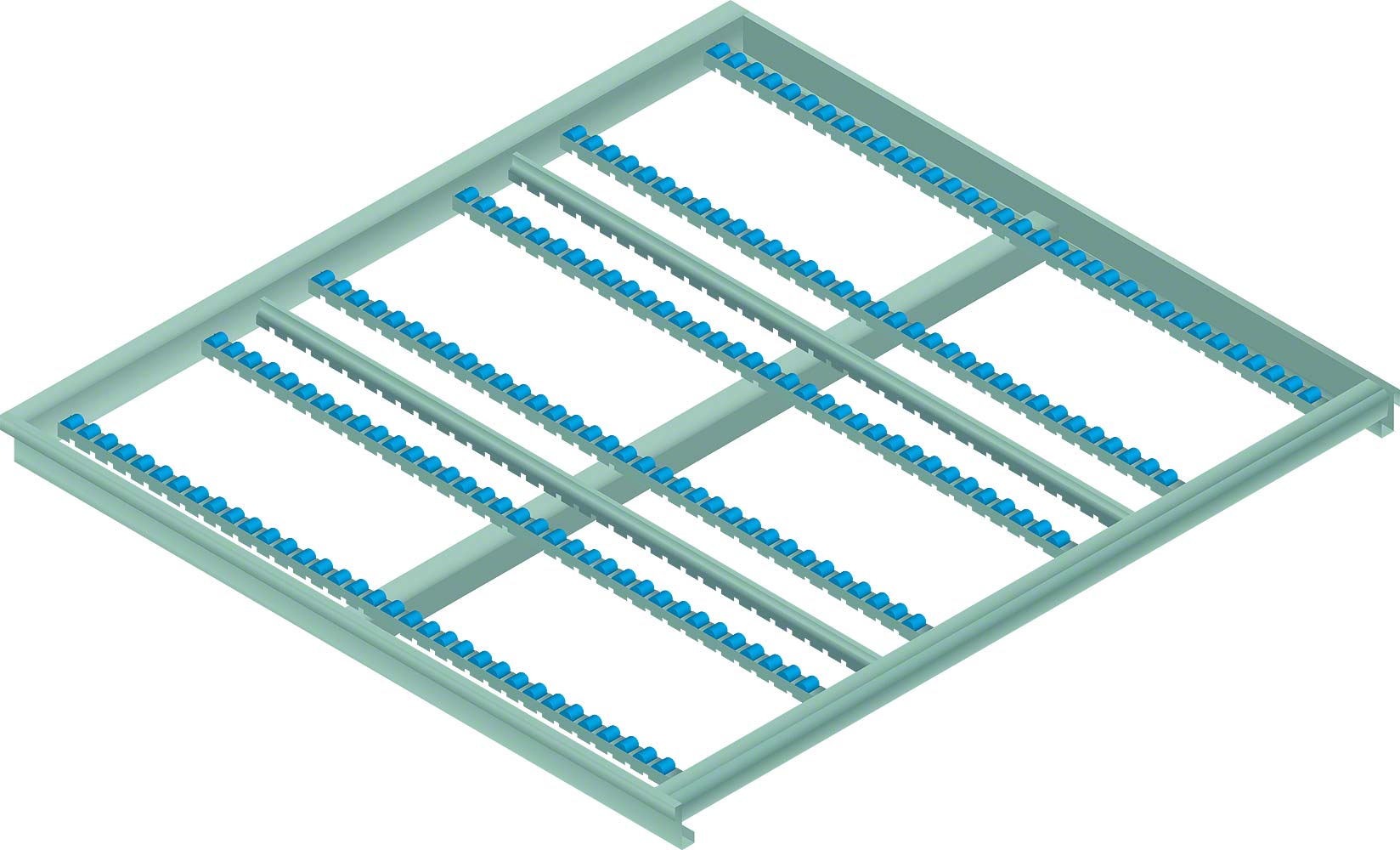

Inclined roller tracks (3°–5° slope) allow cartons to glide smoothly to the access point, reducing operator travel time and increasing picking speed by 40%.
Space Utilization
Back-to-back configuration minimizes aisle requirements, increasing storage density by 200–300% compared to traditional shelving.
Modular Flexibility
Adjustable track widths (200–600 mm) and incremental height adjustments (50 mm intervals) accommodate diverse carton sizes.
Safety & Durability
Integrated ABS dampers or rubber stoppers prevent abrupt impacts at the track end.
Reinforced roller bearings ensure smooth operation under continuous use.
| Parameter | Light-Duty CF-100 | Standard CF-200 | Heavy-Duty CF-300 |
| Load Capacity | 50 kg per lane | 150 kg per lane | 300 kg per lane |
| Track Material | Zinc-coated steel rollers | Stainless steel rollers | Reinforced nylon rollers |
| Track Length | 1500 mm | 2000 mm | 2500 mm |
| Height Adjustment Range | 300–1500 mm | 300–2000 mm | 300–2500 mm |
| Carton Compatibility | 200×150×100 mm (L×W×H) | 600×400×300 mm (L×W×H) | 800×600×400 mm (L×W×H) |
| Compliance | ISO 9001 | ISO 9001 | ISO 9001 |
Installation Requirements:
Floor flatness tolerance ≤2 mm/m².
Allow 10 mm expansion gaps between sections.
Maintenance:
Monthly roller track cleaning to remove debris.
Annual lubrication of bearings (use lithium-based grease).
