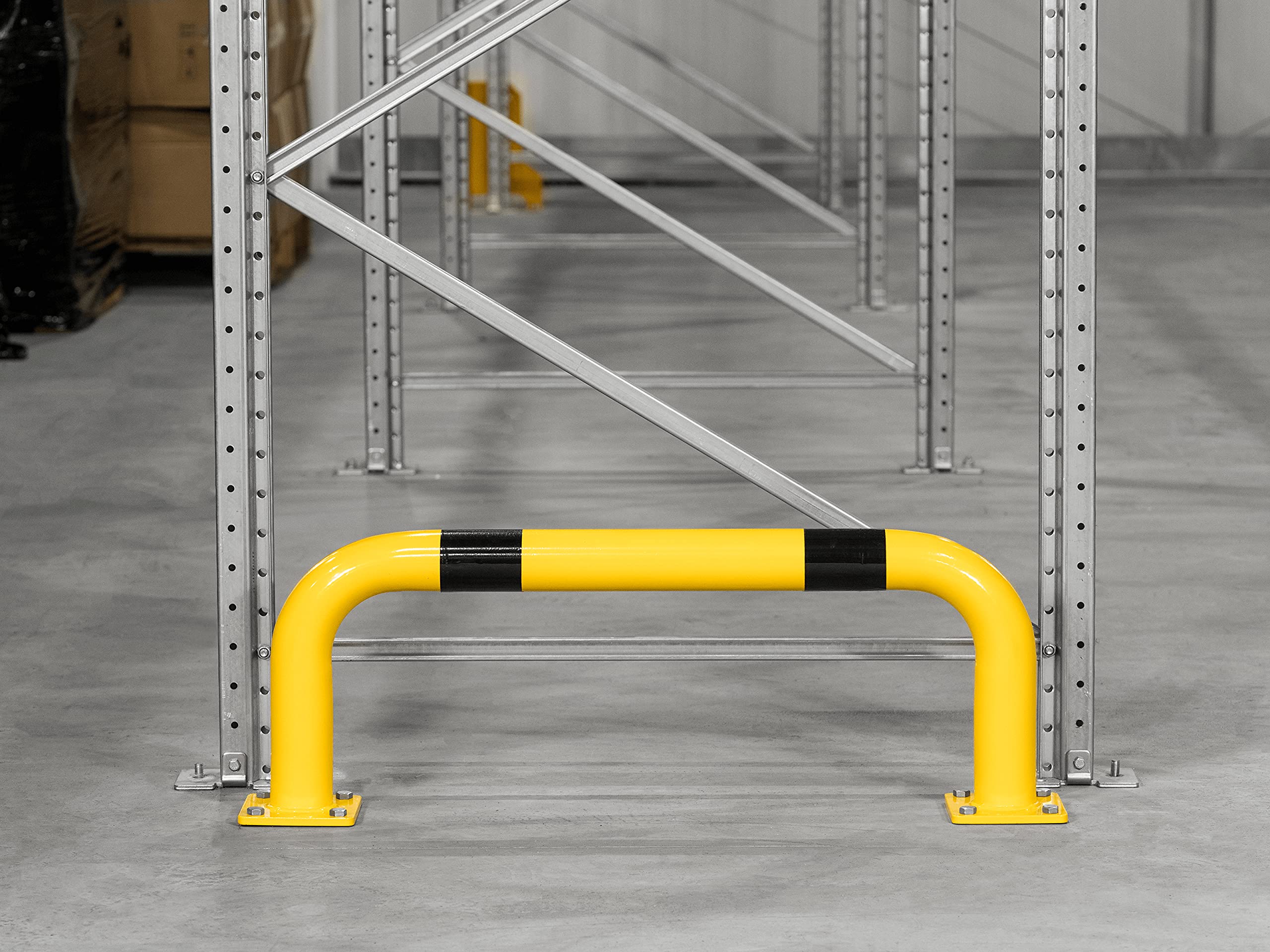

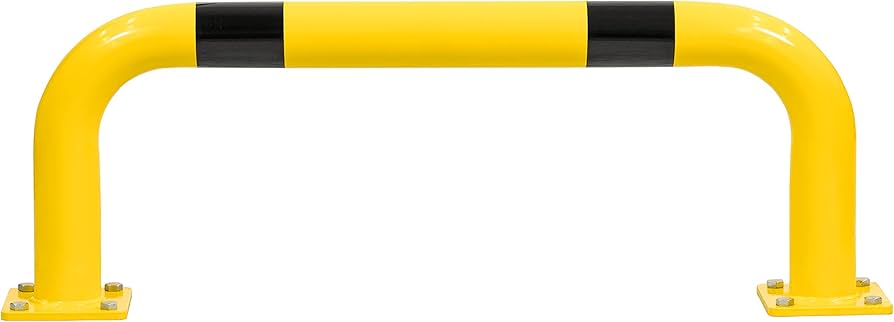

Crash Barrier – Structural Protection for High-Risk Zones

Industrial Rack Protection Barriers are engineered safety systems designed to protect storage racking, infrastructure, and personnel from collisions involving forklifts, automated guided vehicles (AGVs), or other material handling equipment. Constructed from high-strength materials and compliant with global safety standards, these barriers minimize structural damage, reduce operational downtime, and enhance workplace safety in high-traffic warehouse zones.

Core Technical Features

1. Collision Energy Dissipation

• Steel Barriers: Engineered crumple zones to absorb and redistribute impact forces.

• Polymer Barriers: Elastic deformation recovery for repeated low-speed impacts.

2. Modular Installation

• Pre-drilled anchor points for rapid bolting to concrete floors or rack uprights.

• Adjustable lengths (1–4 meters) to accommodate aisle configurations.

3. Visibility Enhancements

• Reflective striping compliant with EN 12899 for low-light environments.

• Optional integrated sensors (IoT-enabled) for real-time collision alerts.

4. Environmental Durability

• Corrosion-resistant coatings (hot-dip galvanizing or epoxy) for humid/chemical exposure.

• UV-stabilized polymer variants for outdoor applications.

Installation & Maintenance Guidelines

• Installation:

1. Conduct site risk assessment to determine barrier placement.

2. Anchor using M12 bolts (50–70 N·m torque) or weld base plates.

3. Attach reflective markings or IoT sensors as required.

• Maintenance:

• Quarterly inspection of fasteners and structural integrity.

• Replace damaged sections without full system disassembly.
