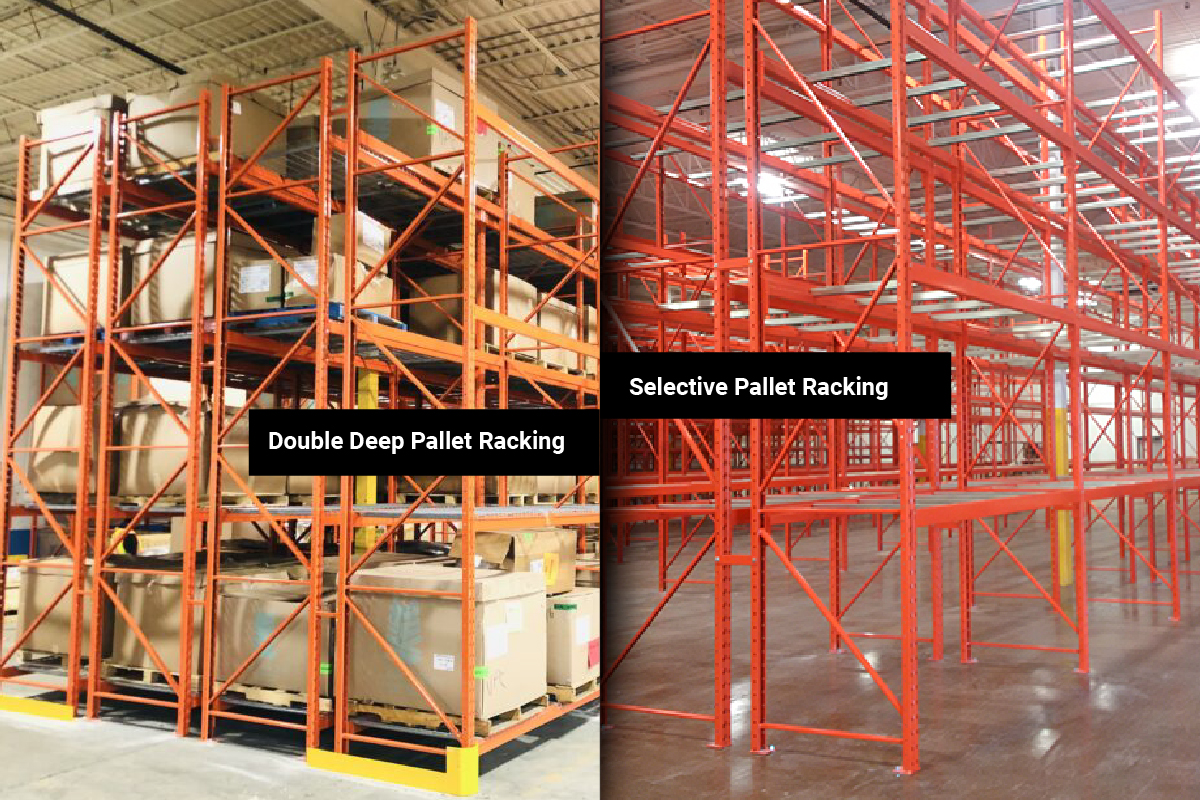

The Double Deep Pallet Racking System is engineered to optimize storage density while maintaining selective pallet access. By arranging pallets in two-depth rows, this system achieves 40–50% higher storage capacity compared to single-deep configurations, without compromising forklift accessibility. Ideal for medium-turnover inventory in industries such as consumer goods, third-party logistics, and manufacturing raw material storage.
Enhanced Space Utilization
Double-depth pallet storage reduces aisle requirements, achieving 60–70% space efficiency (vs. 40–50% for single-deep racks).
Compatible with warehouses with vertical clear heights of 6–12 meters.
Operational Efficiency
Designed for use with reach trucks or double-deep forklifts, enabling efficient FIFO or FILO inventory management.
Maintains direct access to all pallets, unlike drive-in systems.
Robust Construction
Heavy-duty cold-rolled steel uprights and beams (Q235B grade) with adjustable tier heights (75 mm increments).
Static load capacity: 1,000–3,000 kg per tier.
Cost-Effective Scalability
Lower initial investment compared to fully automated systems, with minimal maintenance requirements.
| Parameter | Standard Specification | Customization Options |
| Load Capacity per Level | 1500KG | Up to 5,000 kg |
| Upright Dimensions | 90 mm × 70 mm × 2.0 mm | Galvanized or powder-coated |
| Beam Dimensions | 100 mm × 50 mm × 1.5 mm | Reinforced safety latch design |
| Storage Depth | 2 pallet positions | Configurable for 3 pallet depths |
| Compliance Standards | ISO 9001 | ISO 9001 |
Deployment:
Prefabricated components enable rapid assembly (3–5 days for 1,000-pallet systems).
Maintenance:
Quarterly inspection of beam alignment (tolerance ≤2 mm/m).
Annual torque checks on bolts (45–50 N·m).
