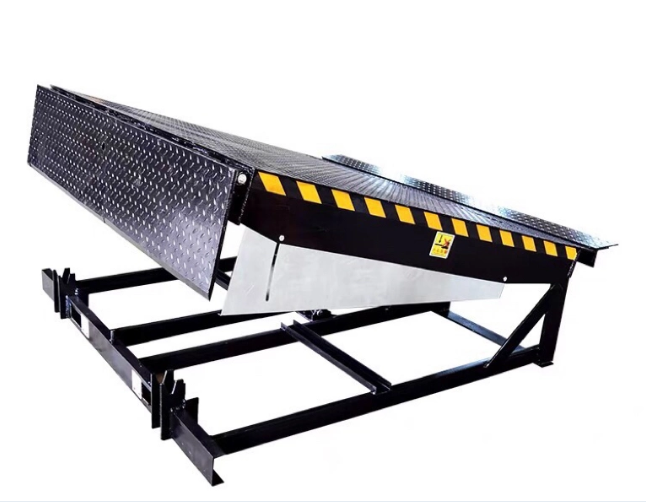

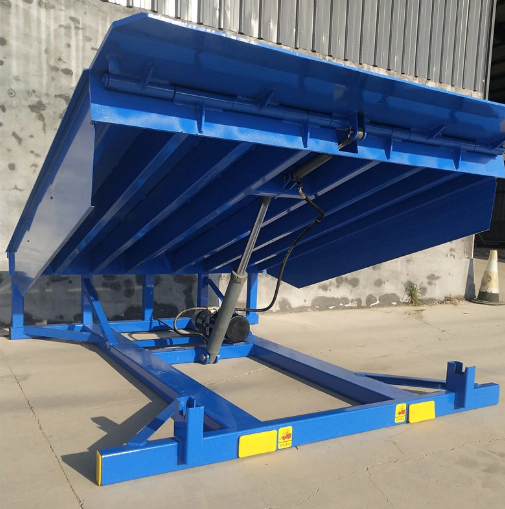

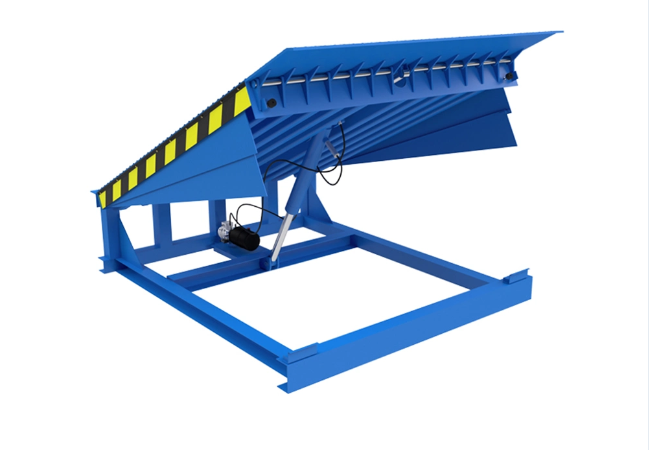

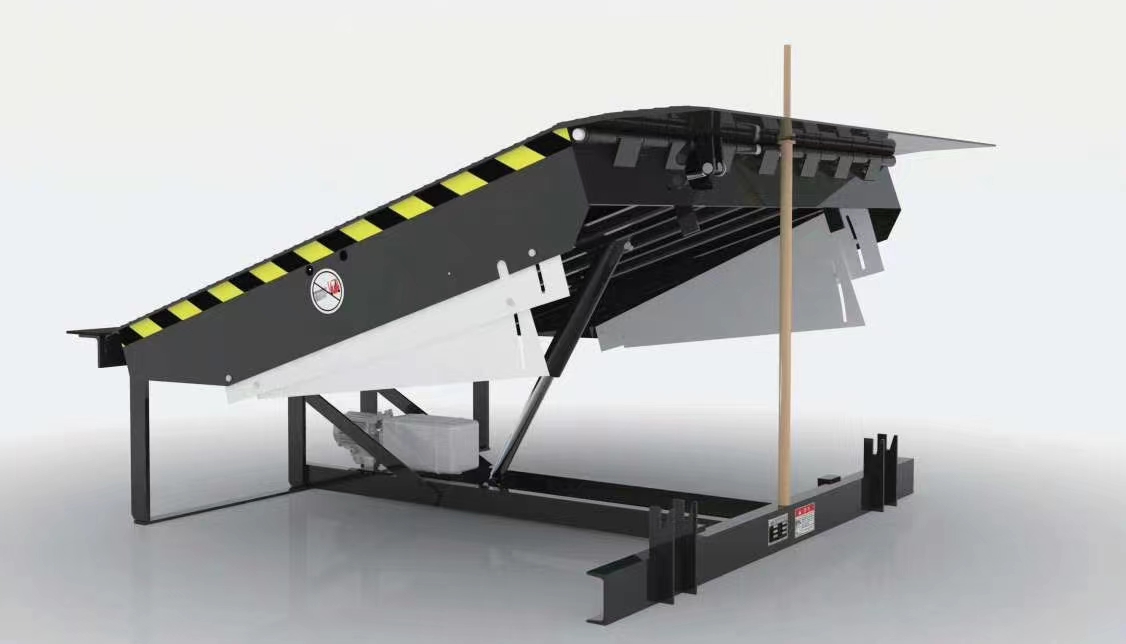

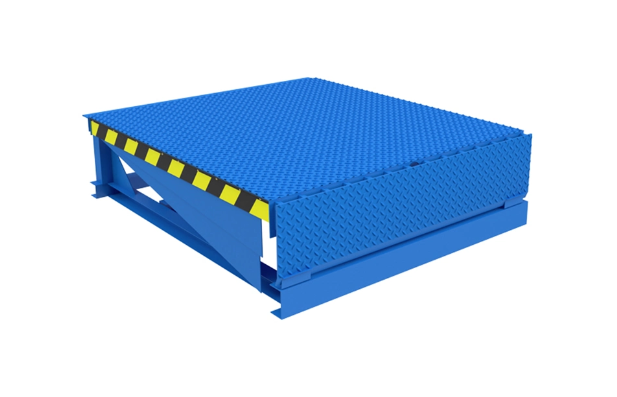

Electric Hydraulic Unloading Platform/Hydraulic Mobile Dock Leveler are efficiently used for handing heavy loads and it also with comprehensive safety configuration.

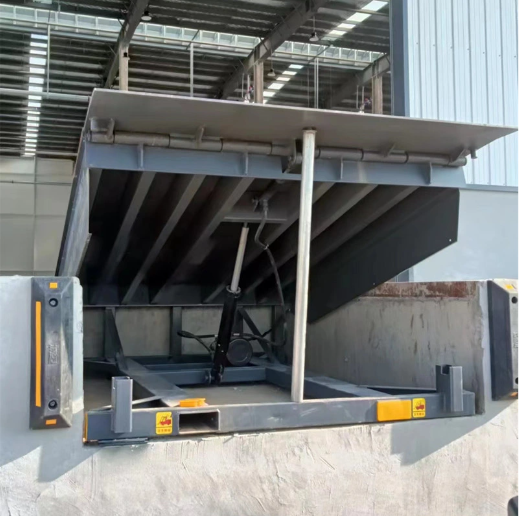

When activated, the leveler is lifted and the lip opens while turning. Next, the platform is lowered until it reaches the floor of the vehicle body.The system is ready for operation. After the work is completed the levelers is lifted, the lip lowers and takes a vertical position, then the platform is returned its original position. Installation can be carried out by both, embedded and suspended installing methods.
Convenient push button activation and first-class hydraulic technology increase the eficiency and safety ofthe loading and unloading work.It is classified to five kinds by carrying-weight capacity, such as 5T.6T,8T,10T, 12T. 15T etc.
| More details: |
1. Rated load 5-15t |
2. Equipment size: be customized |
3. Power form: Electric hydraulic 380 with solenoid valve |
4. Adjustment range+400/-300m |
5. Adjusting the time: up time ≤16S, down time ≤10S |
6. Thickness and length of 16mm patterned integrated board |
7. Main board thickness 8mm panel |
8. External installation method for electric control box |
9. Hydraulic pump station model/manufacturer KS380 with solenoid valve |
10. Seal import |
11. One mainboard oil cylinder (master cylinder) 80 |
12. One auxiliary oil cylinder for the landing plate (50) |
13. Motherboard skeleton national standard 120 * 60 * 4mm rectangular tube, hinge 12mm thick |
14. Installing support rods facilitates installation, cleaning, and maintenance |
15. National standard for high-pressure oil pipes/T3683-2001; 40mpa |
16. Automatic expansion and contraction of body guards on both sides to ensure safety |
17. Hydraulic oil specifications/models 32 # anti-wear hydraulic oil |
18. Hydraulic oil working pressure 8Mpa ± 1Mpa |
19. Hydraulic oil tank capacity 6L |
20. Hydraulic system working temperature -30°C~+50°C |
21. Anti collision adhesive layer stacked anti-collision blocks |
22. Patterned steel plates and other profiles are made of Baosteel Q235B steel |
23. The surface treatment of the paint is sandblasted and baked at a high temperature of 150°C to ensure good adhesion, high hardness, and better rust prevention performance of the product |
24. Color: be customized |
25. Used≥ 200000 times |
26. Equipment availability rate ≥ 99% |
27. Working noise < 50dB（±5Db) |
| 28.Weight 800KGS under standard conditions |
