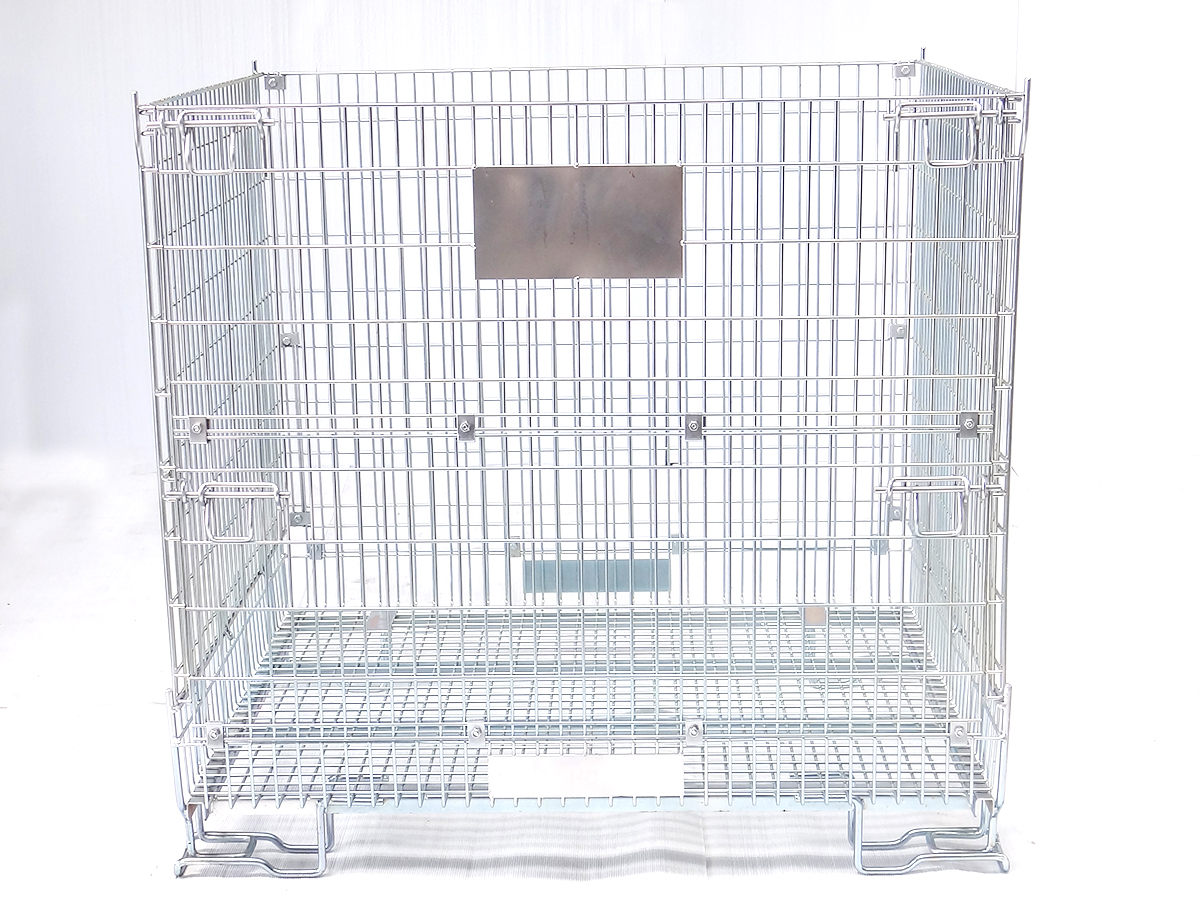

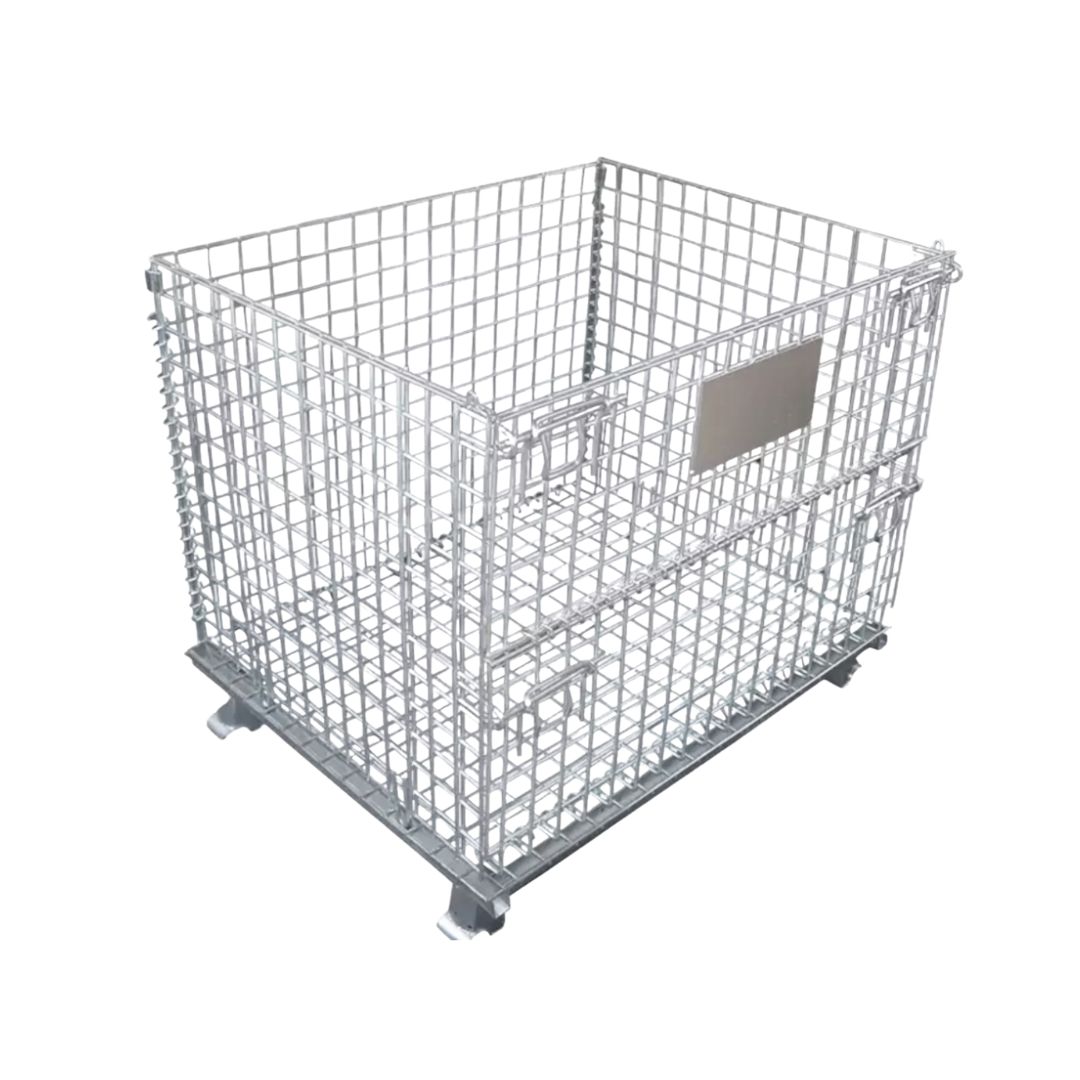

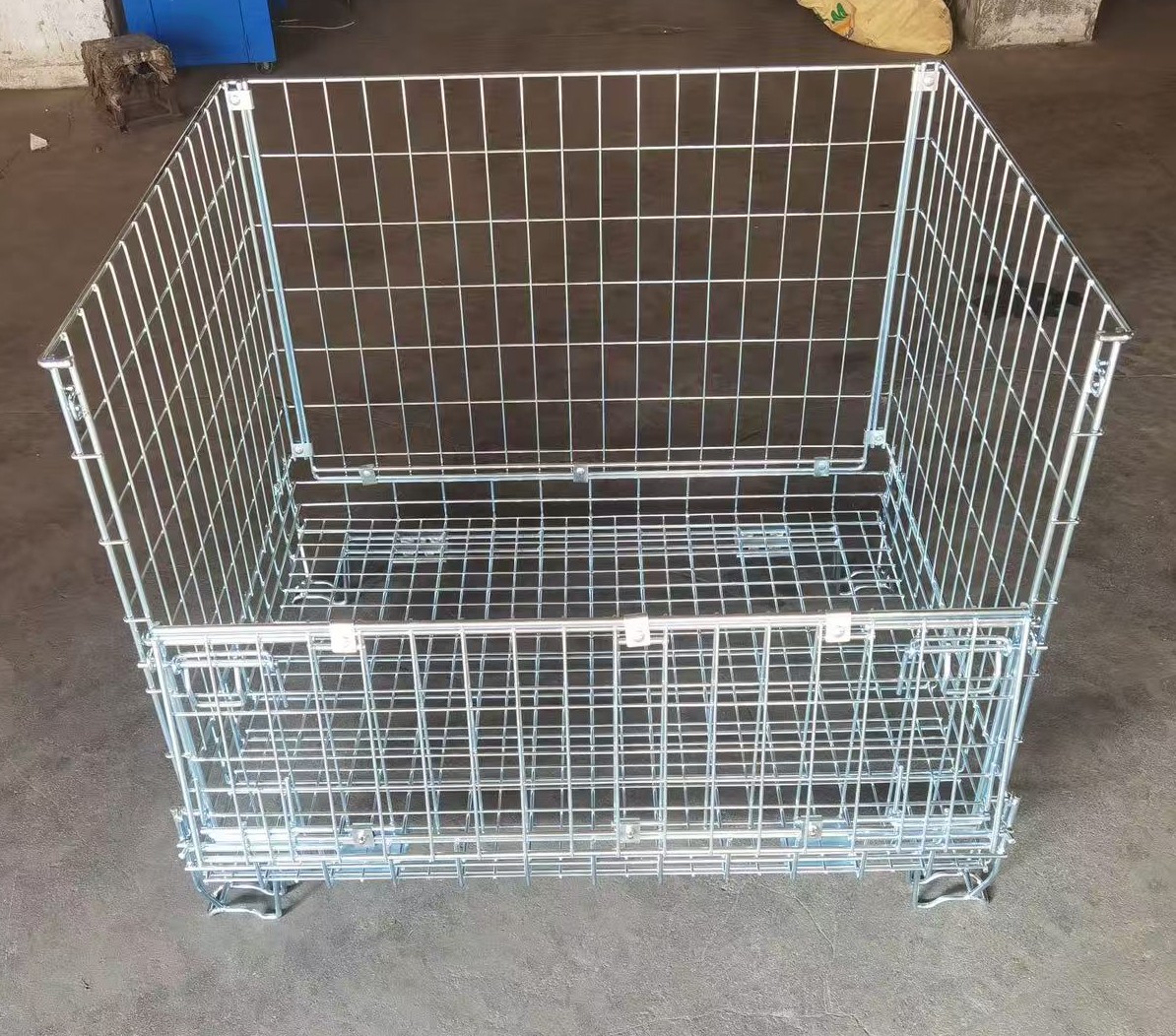

European Storage Cages are engineered containment units designed for secure storage and transportation of goods in regulated industrial environments. Manufactured to European material handling standards (EN 15512, EN 1090), these systems provide structural integrity, operational flexibility, and compliance for logistics, manufacturing, and retail applications.
| Parameter | Standard |
| Dimensions (L×W×H) | 1200×800×1000 mm |
| Mesh Configuration | 50×50 mm |
| Static Load Capacity | 800 kg |
| Frame Material | Electro-galvanized steel |
| Weight | 42 kg |
| Compliance | ISO 9001 |
Structural Engineering
Laser-welded joints with maximum tolerance of 0.5 mm.
Reinforced corner plates (6 mm thickness) and dual-welded base frames.
Operational Features
Collapsible design reduces storage volume by 80% (patented hinge mechanism).
Stackable configuration supports up to 4 loaded units vertically.
Access and Security
Lockable swing doors with dual-point latching (EN 13001-3-1 compliant).
Optional configurations: sliding gates, roof access panels.
Integration Compatibility
Standard forklift channels (85 mm clearance height).
AGV/AMR interface points per ISO 3691-4.
Deployment Protocol:
Expand collapsed unit via hinge mechanism (tool-free).
Secure door assemblies with shear pins (included).
Maintenance Schedule:
Quarterly inspection of weld integrity and structural alignment.
Annual lubrication of hinges (food-grade grease for ESC-300).
Pressure wash tolerance: ≤80°C water temperature.
