Falling Item Prevention for Pallet Racks

In warehousing and storage operations where inventory is stored high on racks, it’s a sad fact of life: sometimes pallets or cartons fall.

They fall because they’re stacked wrong. They fall because an order picker or a forklift bumps them. They might fall because the pallet breaks or was poorly stacked. They fall due to seismic activity, rack failure or just plain mistakes. There are plenty of reasons they fall, but how can you reduce your risks?

Since racks tend to contain very heavy items and full pallets, falling items are a considerable danger. Because they’re tall by design — some are over 9000mm tall at the highest beam level — the dangers are amplified. Anything falling from the top of a high bay is going to not only be destroyed, but has the potential to injure people and break things when it lands. What steps can you take to reduce these risks?

1) Load racks with product drops in mind

A great many rack collapses and instances of falling items have to do with the way the rack was loaded. You can make a huge difference by simply loading the rack the way it was intended to be loaded.

Make sure your lateral pallet spacing is right

If your pallets are too close together, it’s harder to access them with a forklift. This increases the likelihood that a driver will make a mistake and bump an adjacent pallet, sending it to the floor. The industry standard is that your beam width (side-to-side) should be greater than your maximum total load width plus 30mm.

Provide plenty of vertical space

When it comes to space between beams, it’s important to regulate the overall height of your loads vs. the beam spacing in your rack system. The industry recommends that you should have a minimum of no less than 25mm. Leave your drivers plenty of space to maneuver pallets as they load and unload.

If your inventory mix changes, be sure your new pallets don’t exceed your beam spacing, and don’t allow the 25mm cushion to be compromised.

Light your warehouse

Dark conditions contribute to errors, and errors can result in a bunch of expensive inventory on the floor. Although rack aisles are notoriously difficult to light, the cost of modern lighting systems tends to be offset by energy savings and tax credits.

Don’t use ratty pallets

Pallets that are about to come apart are more likely to cause a product dump. Make sure your pallets are in good condition and rated to handle your unit loads.

Store the heaviest items in the lower bays or on the floor level

This is common sense, but in a rack where there is a mixture of loads (say, bottled water and pillows), store the high-density, heavy stuff on the ground and the pillows at the highest levels. This helps make your rack more stable and makes load/unload errors at the top less critical.

Train for better outcomes

If your drivers are loading expensive inventory, it’s a process to ensure it’s being done the way you want. You should have a specific process for loading/unloading to help reduce the chances of falling items. When you do forklift training, break down the various processes.

Load your racks evenly, with the loads centered

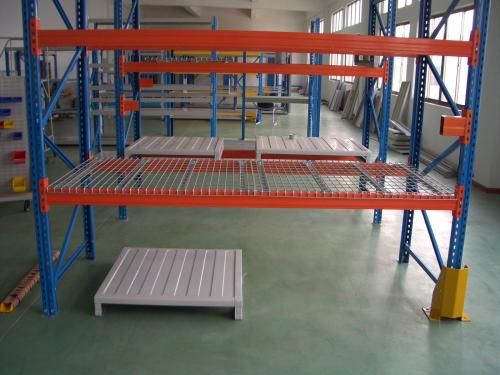

Many racks have wire deck or pallet supports that help them take nonstandard or undersized pallets. This is helpful, but if you misapply the load, loads can fall. The center of gravity for your pallets should not be focused on the front part of the beam level, as this pulls the rack forward.

Stack your pallets right

No matter the quality of the rack, or how carefully it’s loaded, items can fall from a poorly stacked pallet.

• Stack heavier cartons or loads on the bottom layer.

• Center loads on the pallet as evenly as possible.

• If you receive pallets from a third party, demand that the loads are properly stacked, with product balanced in ways that don’t risk a collapse.

• Inspect incoming loads and train your people on the best ways to ensure a good pallet goes up on the rack.

• You can also shrink wrap or band your pallets to help them hold together.

2) Take good care of your pallet racks (so they can take good care of you)

Inspect your racks regularly

Be sure there are no bent frames, no missing beam clips, no hardware out of place. This should be done frequently and consistently.

Report all incidents

Make sure people report any rack collision, even if there isn’t any apparent damage. Many companies make these collisions “no fault” to ensure that drivers can report them without fear of reprisal. You want to know as soon as you can if an upright has been compromised.

Specify the right rack

If you are in a seismic zone, be sure to comply with regulations. You should always consult a rack professional if you’re erecting a rack system in an earthquake zone.

Post your capacities

Label systems are inexpensive and easy to apply. Be sure that you get assistance if you change the storage mix, as pallet rack capacities are dependent on beam spacing, and establish processes to be sure racks aren’t loaded with new items without checking their size/capacity beforehand.

Use column and upright guards

It’s always a good idea to take the most basic protective measures. Guards range from simple steel frame protectors that bolt to the floor to poly guards that surround the posts with a “cushion of air.” Whatever you choose, use something to protect those posts. It almost always pays off.

3) Guard your rack’s most vulnerable fall points

Rack nets and guard panels can save dollars & reduce injuries

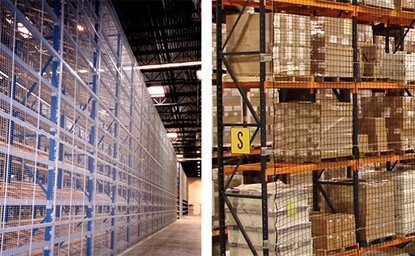

• Rack safety nets: These nets are flexible and can help catch a carton if it’s inadvertently knocked off a stored pallet. In some cases, they can help prevent a poorly plafed pallet from pushing  through the back of the rack and spilling onto the floor. Nets can be installed in dozens of standard and nearly unlimited custom configurations. You can install them flat or offset to the back of a rack.

• Wire mesh back panels: These serve the same general purpose as netting, but are more substantial. They will not flex to catch a falling box, but instead are rigid and stop it from sliding past a certain point off the back of a rack storage position.

Help drivers to reduce damage as they load and unload racks with forklift lasers

One excellent new tool that helps drivers load a rack is the forklift positioning laser. These systems align with the fork tines and shine on the pallet in front of the forklift, providing a guide line showing the forklift operator the position of the tines at all times.

Be sure the lifts don’t have solid tops or other impediments to visual inspection as they access your pallets.
