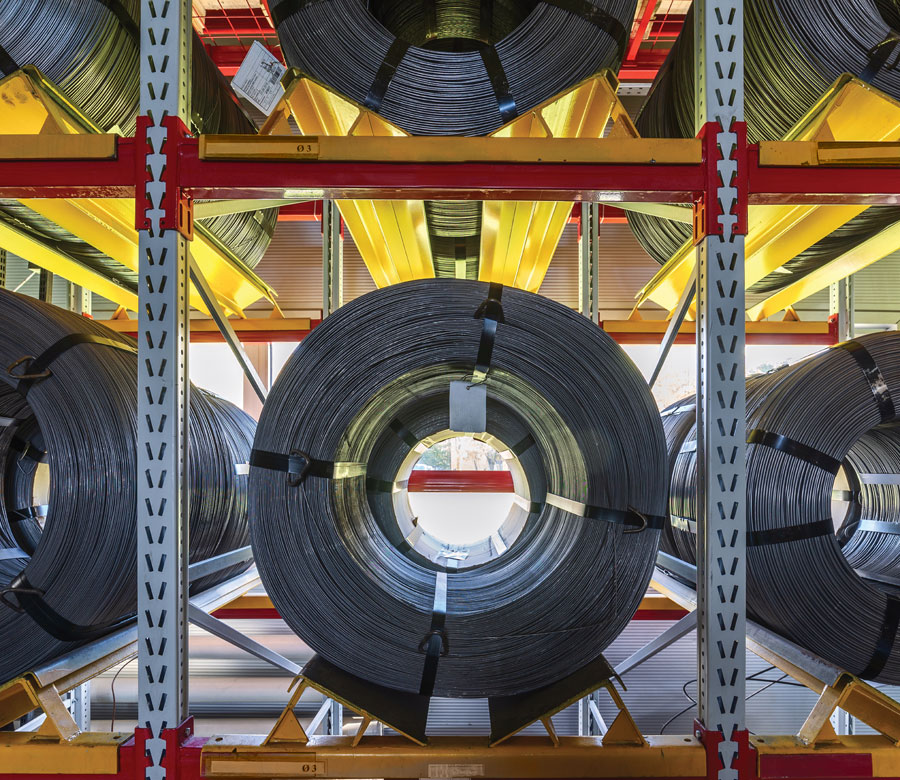

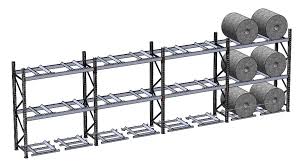

Coils Racks are engineered to safely store and organize heavy metal rolls (steel, aluminum, copper, etc.) in manufacturing plants, warehouses, and distribution centers. These racks prevent material deformation, optimize floor space, and enable efficient FIFO/LIFO inventory management. Designed for loads up to 20,000 kg per tier, they are ideal for industries requiring precision handling of coiled materials.
Structural Integrity
Frame: High-tensile steel (Q235B) with reinforced cross braces.
Surface Treatment: Hot-dip galvanized or epoxy coating for corrosion resistance.
Safety-First Design
Roller Guides: Adjustable inclined rails (3°–8°) to prevent roll movement.
Anti-Tip Barriers: Welded safety stops at lane ends.
Space Efficiency
Vertical stacking of 2–4 tiers, reducing floor footprint by 60%.
Configurable lane depths (2–10 rolls per lane).
Ergonomic Access
Compatible with forklifts, cranes, or automated retrieval systems.
Clear aisle widths (3–5 m) for safe maneuvering.
| Industry | Design Focus | Typical Customization |
| Steel Mills | - High-temperature resistance (up to 80°C) - Reinforced rails for hot-rolled coils | - Material: S355JR steel - Coating: Ceramic thermal barrier |
| Automotive | - Precision alignment for robotic handling - ESD-safe materials | - AGV docking points - Conductive polymer rollers |
| Marine Logistics | - Saltwater corrosion resistance - Seismic reinforcement | - Coating: Marine-grade aluminum-zinc - Base isolation systems |
Installation：
Bolt-on assembly (no welding required).
Onsite calibration for load distribution.
Maintenance：
Annual inspection of rail alignment and bolt tension.
Re-coating cycle: 10–15 years (depending on environment).
