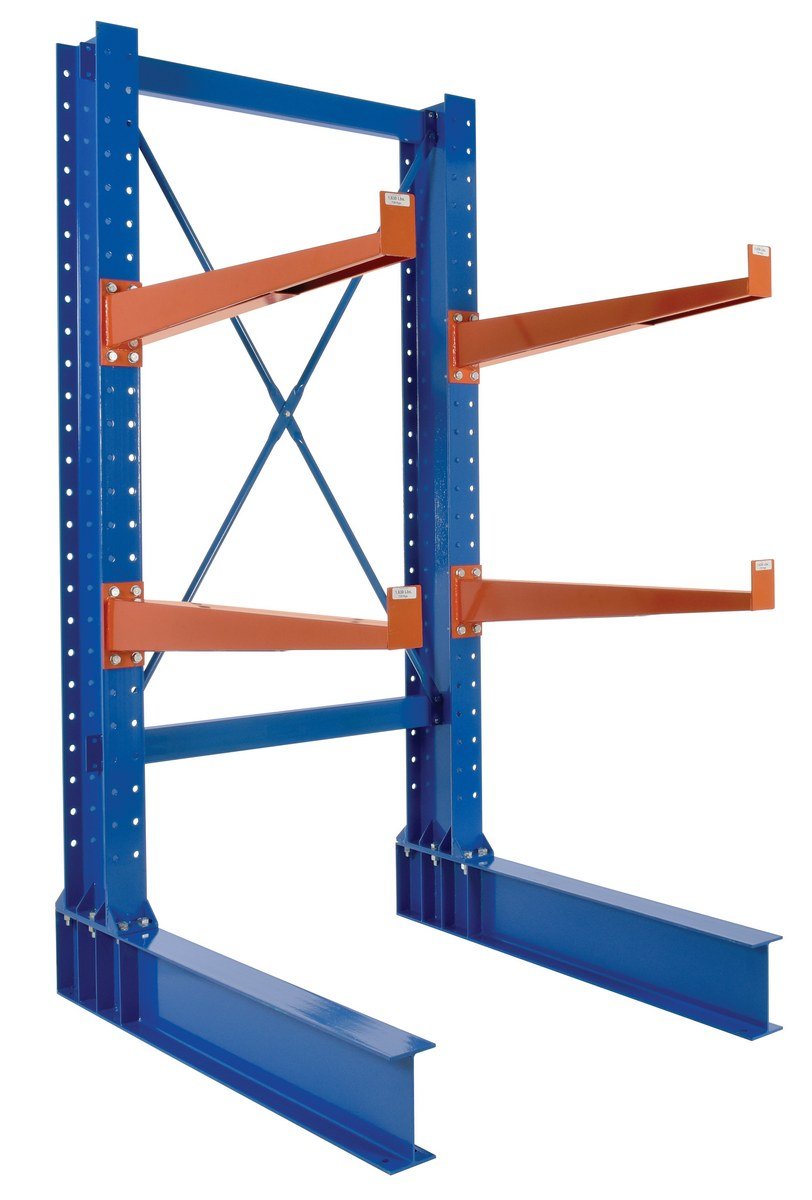

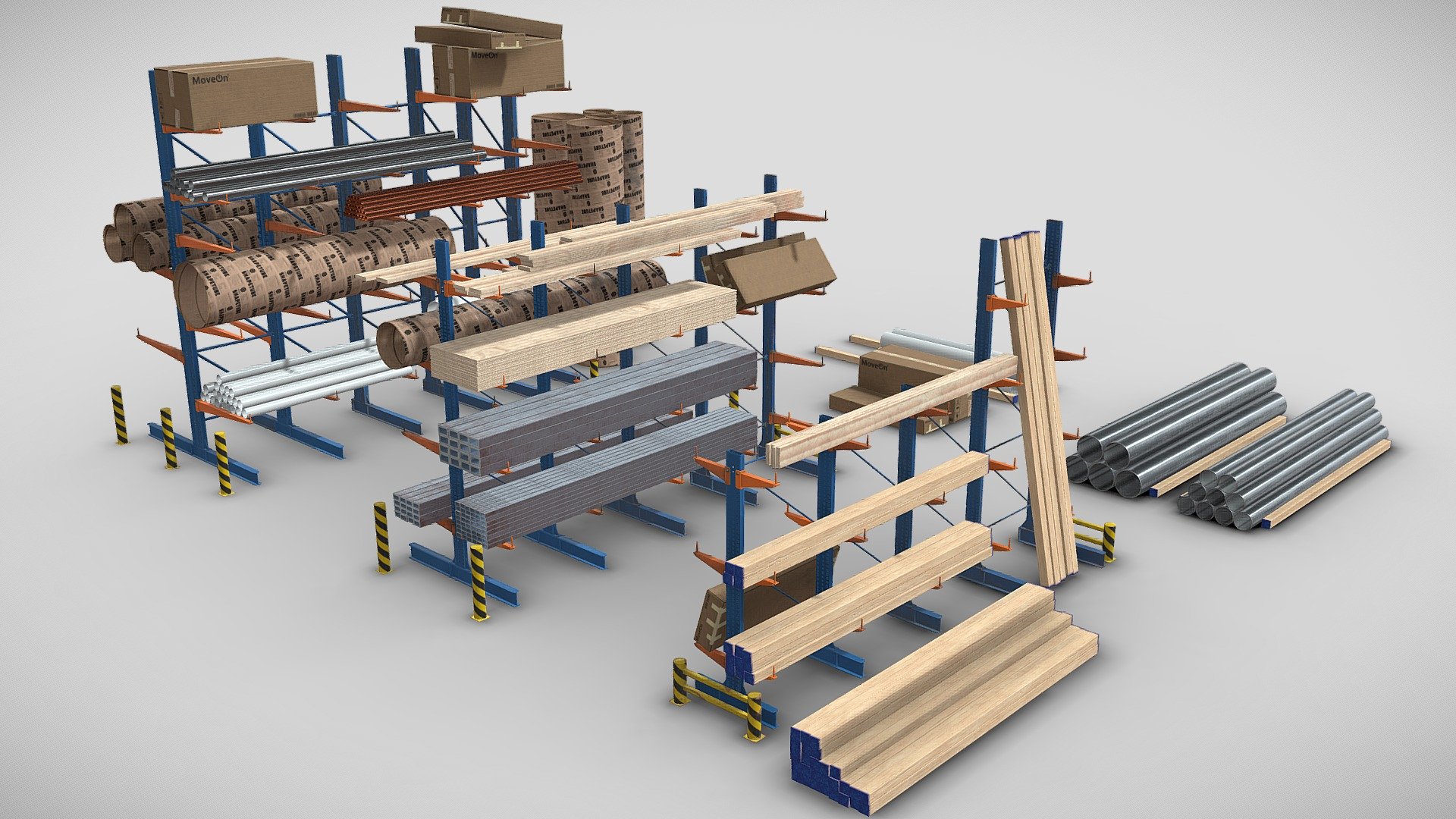

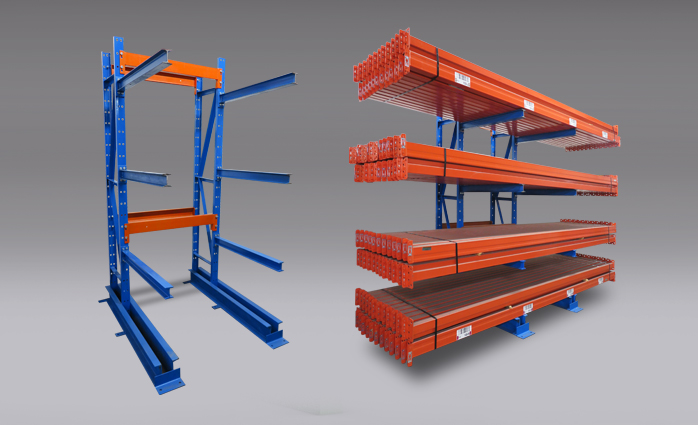

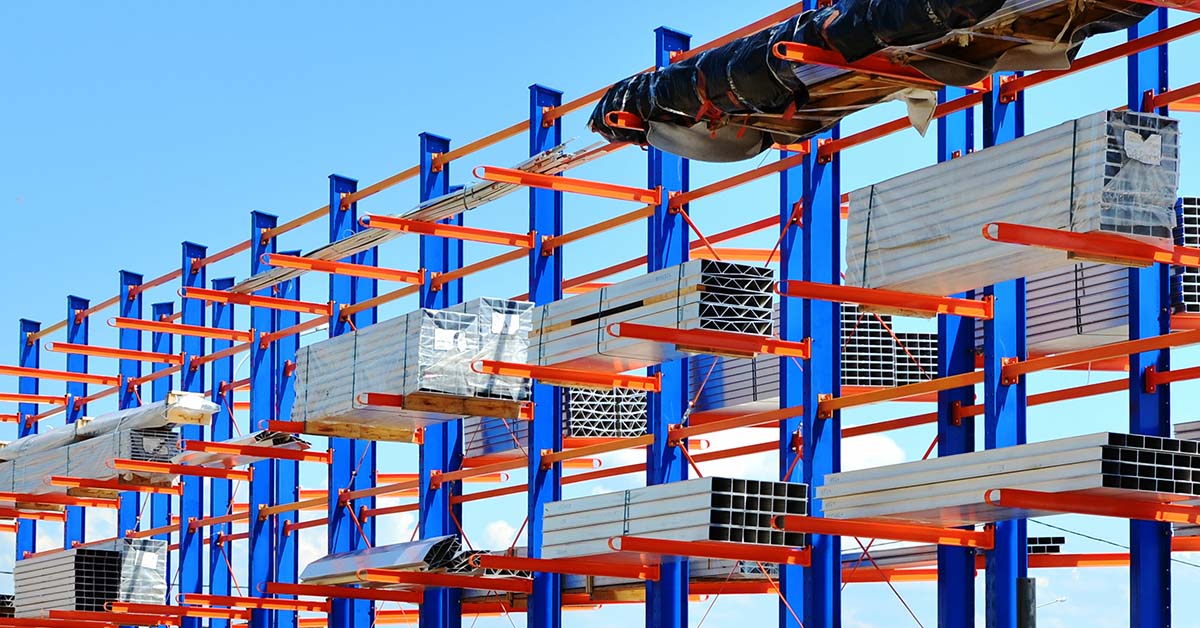

Cantilever Racking Systems are engineered for efficient storage of lengthy, oversized, or irregularly shaped items that cannot be accommodated on conventional pallet racks. Featuring column-free front access and adjustable arms, this system provides unobstructed loading/unloading for materials such as lumber, pipes, furniture, and building supplies. Ideal for lumberyards, metal fabrication, and construction supply warehouses.
| Parameter | Model CL-500 | Model CL-1500 | Model CL-3000 |
| Arm Length | 1000mm | 1500mm | 3000mm |
| Load Capacity per Arm | 500kg | 1500kg | 3000kg |
| Upright Height Range | 3-6m | 4-8m | 6-10m |
| Structural Thickness | 3 mm (arms), 6 mm (uprights) | 5 mm (arms), 8 mm (uprights) | 8 mm (arms), 10 mm (uprights) |
| Surface Treatment | Powder Coating (60–80 μm) | Hot-Dip Galvanized (≥85 μm) | Epoxy Coating (120 μm) |
| Compliance Standards | ISO 9001 | ISO 9001 | ISO 9001 |
Structural Mechanics
Cantilever arms transfer loads to reinforced uprights via moment-resistant connections.
Triangular bracing minimizes torsional deflection (max. 1:200 L/d ratio under full load).
Adjustability & Configuration
Arm height adjustable in 50 mm increments with shear-pin locking.

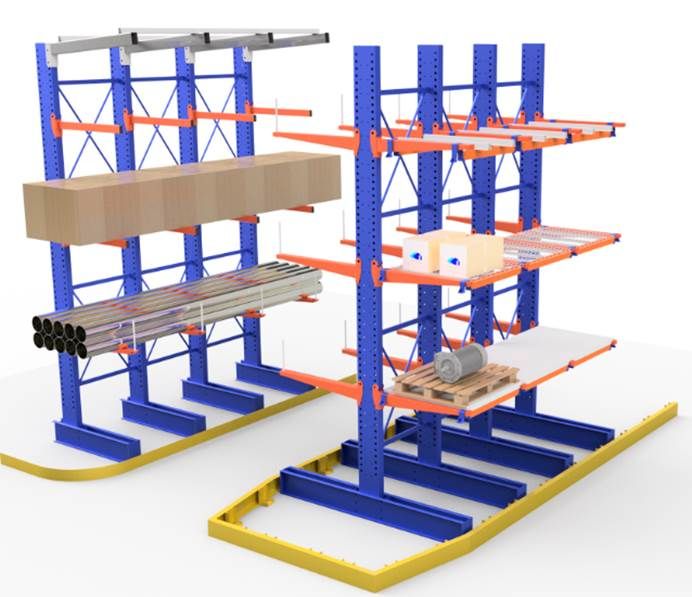

Configurations: Single-sided (wall-mounted) or double-sided (aisle access).
Material Specifications
Primary steel: S355JR (yield strength: 355 MPa).
Temperature tolerance: -30°C to +80°C (arctic-grade options: -50°C).
Safety Integration
Base plates require M16 anchor bolts (torque: 210 N·m) for seismic zones (≥0.3g).
Arm end caps with ISO 7010-compliant reflective markings.
Site Preparation
Concrete floor strength: ≥3,000 PSI (20 MPa).
Level tolerance: ≤3 mm/m².
Assembly Sequence
Anchor uprights using chemical epoxy anchors (M16).
Mount arms at designated heights with shear pins.
Install diagonal braces (min. 2 per upright section).
Post-Installation Verification
Vertical alignment tolerance: ≤1° deviation.
Load testing: 125% of rated capacity.
