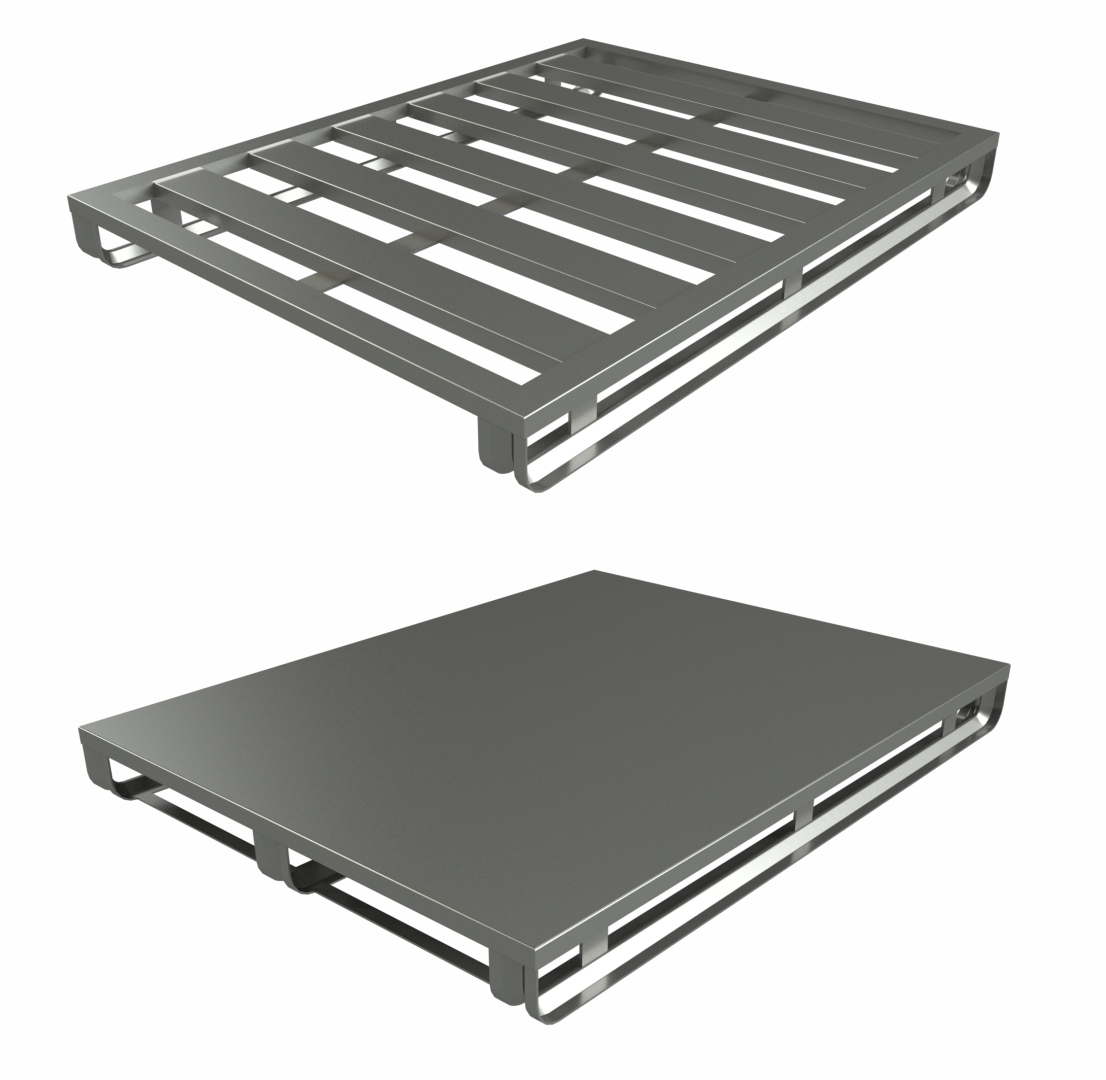

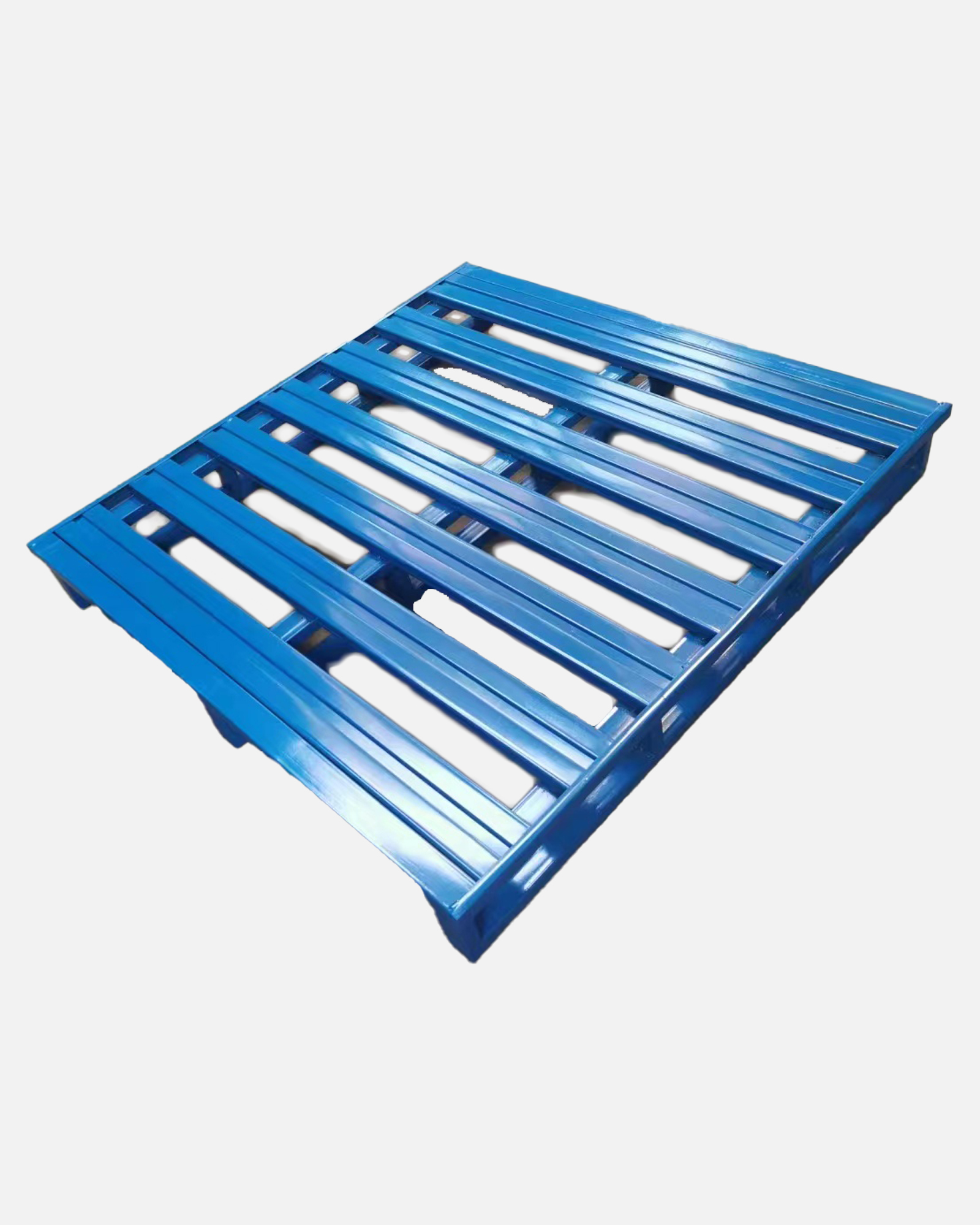

Industrial Steel Pallets are structural platforms designed for heavy-duty material handling in demanding environments. Fabricated from high-tensile steel with precision welding, these pallets provide superior load capacity, dimensional stability, and compliance with international logistics standards. Suitable for automated systems, extreme-temperature applications, and regulated industries.
| Parameter | Model 1 | Model 2 | Model 3 |
| Dimensions (L×W×H) | 1200×800×150 mm | 1200×1000×150 mm | 1200×1200×150 mm |
| Static Load Capacity | 3,000 kg | 6,000 kg | 10,000 kg |
| Dynamic Load Capacity | 1,500 kg | 3,000 kg | 5,000 kg |
| Material Specification | Q235B | Q235B | Q235B |
| Surface Treatment | GI | GI | GI |
| Weight | 32kg | 48kg | 65kg |
| Certification | ISO 9001 | ISO 9001 | ISO 9001 |
Structural Engineering
Continuous MIG welding per ISO 3834-2 (weld penetration ≥80%).
Box-section runners (3.0–5.0 mm thickness) with deflection limit ≤1.5% at rated capacity.
Functional Configuration
4-way forklift entry (100 mm clearance height).
Chamfered edges (45° angle) for AGV compatibility (ISO 3691-4).
Environmental Performance
Operating temperature range: -40°C to +300°C.
Corrosion resistance: 1,000 hours salt spray testing (ISO 9227).
