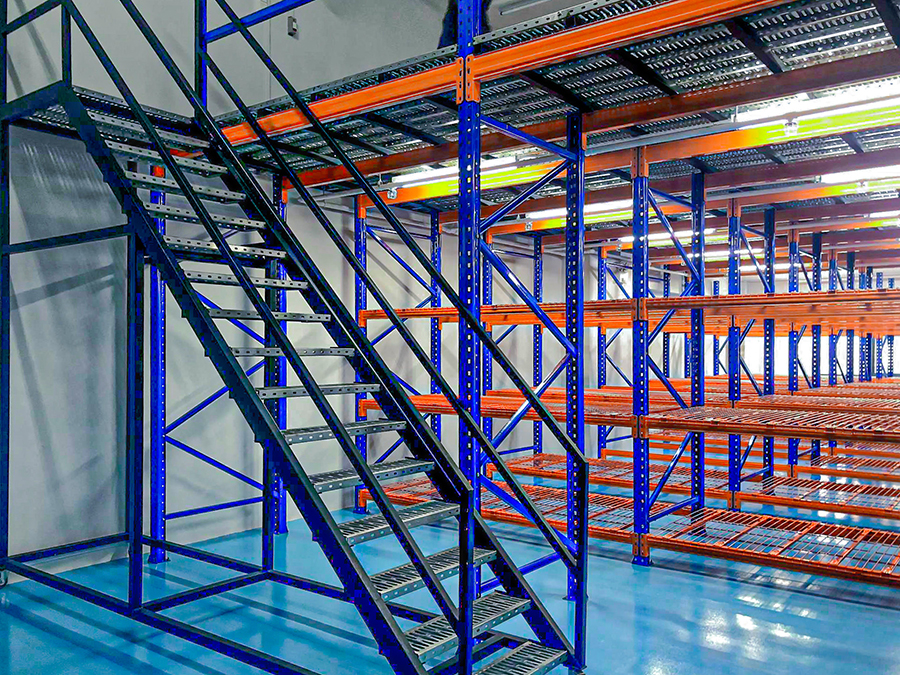

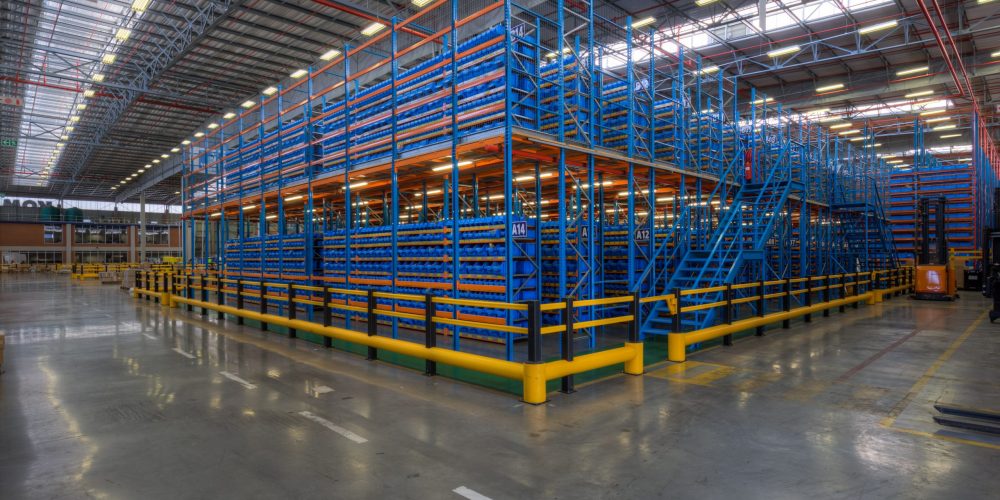

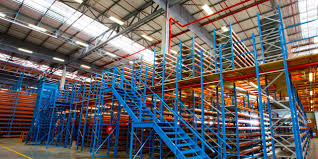

The Mezzanine Racking System is a versatile, multi-tiered storage solution designed to maximize vertical space in warehouses, factories, and retail facilities. By integrating structural shelving with elevated platforms, it enables efficient storage, workflow separation, and workspace expansion without requiring additional floor area. Ideal for facilities with limited footprint but growing storage demands.
Multi-Level Design
Adds 2–3 operational tiers within existing floor space, increasing storage capacity by 200–300%.
Configurable as partial or full mezzanines (e.g., work platforms, shelving decks).
High Load Capacity
Supports static loads up to 1,500 kg/m² (platform) and 500–1,000 kg/shelf (integrated racks).
Reinforced steel frameworks with boltless assembly for rapid deployment.
Modular Flexibility
Adjustable platform heights (2.5–6 m) and shelving layouts to match workflow needs.
Compatible with forklifts, conveyor systems, and automated equipment.
Safety Compliance
Guardrails, anti-slip decking, and reinforced access points (stairs/ladders) standard.
Meets OSHA, EN 1090, and local building codes.
| Component | Standard Specification | Heavy-Duty Specification |
| Platform Material | Cold-rolled steel decking (2.5 mm thickness) | Hot-dip galvanized steel (3.0 mm thickness) |
| Frame Structure | Q235B steel beams with boltless connections | Welded steel beams with seismic bracing |
| Max Platform Load | 1,000 kg/m² | 1,500 kg/m² |
| Shelving Integration | Adjustable rivet shelves (up to 1,000 kg/shelf) | Pallet flow racks (up to 3,000 kg/shelf) |
| Height Range | 2.5–4.5 m | 4.5–6.0 m |
| Access Options | Stairs, ladders, or lift gates | Stairs, ladders, or lift gates |
E-Commerce Fulfillment
Image Suggestion: Workers picking items from mezzanine shelves above a packing station.
Use Case: Separate inventory storage (upper tiers) from order processing (ground level).
Manufacturing Workshops
Image Suggestion: Assembly lines on mezzanine platforms with raw material storage below.
Use Case: Vertical workflow optimization for lean manufacturing.
Retail Backrooms
Image Suggestion: Compact mezzanine storage for seasonal stock above retail floors.
Use Case: Expand storage without disrupting customer areas.
