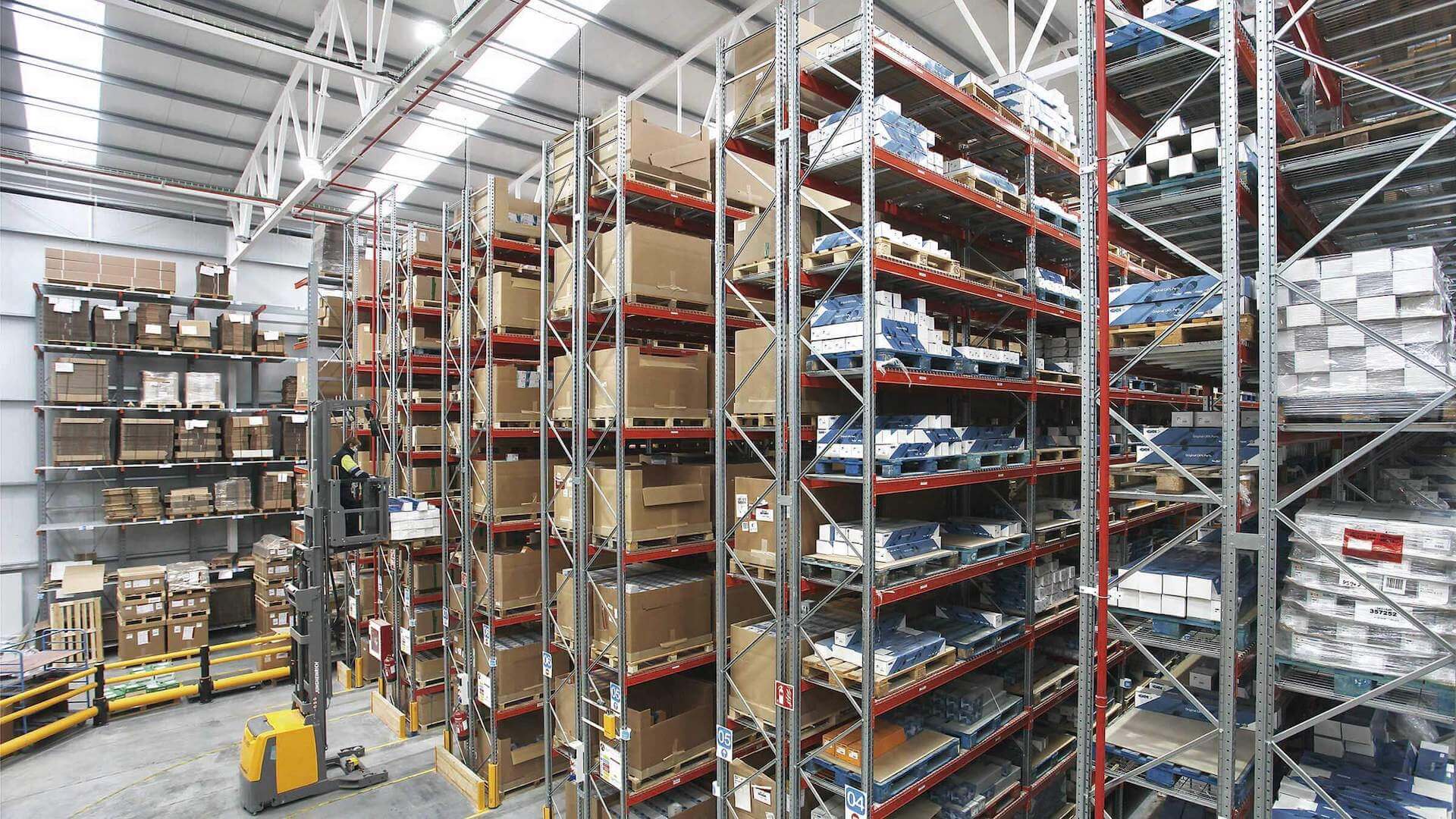

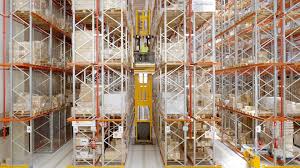

The Very Narrow Aisle (VNA) Racking System is a high-density storage solution designed for warehouses requiring maximum vertical space utilization and precise inventory management. By minimizing aisle widths to 1.6–2.0 meters and utilizing specialized handling equipment, this system supports storage heights up to 18 meters, optimizing capacity while maintaining operational efficiency. Suitable for homogeneous SKUs with high throughput in industries such as logistics, manufacturing, and cold chain storage.
| Parameter | Customizable Parameters |
| Aisle Width | 1,400–2,200 mm (equipment-dependent) |
| Maximum Height | Up to 18 m (site-specific) |
| Pallet Load Capacity | Up to 3,500 kg/pallet |
| Upright Material | Stainless steel, galvanized steel |
| Beam Specifications | Boltless clip-in or welded beams |
| Safety Compliance | Client-specific regional standards |
Space Optimization
Vertical storage density increased by 40–50% compared to conventional systems.
Compatible with guided forklifts or stacker cranes (rail or wire guidance).
Structural Integrity
Reinforced uprights with baseplates anchored to floor slabs (anchor bolt torque: 100–150 N·m).
Seismic bracing options for regions with seismic activity ≥0.3g.
Operational Precision
Laser-guided or rail-based navigation systems for ±10 mm positioning accuracy.
Integration with WMS/ERP systems for real-time inventory tracking.
Environmental Adaptability
Anti-corrosion treatments (hot-dip galvanizing or epoxy coatings) for humid or chemical environments.
Cold storage compatibility (operating range: -30°C to +40°C).
Logistics and Distribution Centers
High-turnover SKU storage with rapid retrieval cycles.
Image Recommendation: Automated stacker crane in a VNA aisle.
Food and Beverage Storage
FIFO/FEFO compliance for perishable goods in cold chain facilities.
Image Recommendation: Refrigerated warehouse with VNA racks and temperature-controlled forklifts.
Automotive Manufacturing
Bulk storage of components (e.g., tires, engine parts) with JIT (Just-in-Time) compatibility.
Image Recommendation: AGV retrieving pallets from high-bay racks.
