Efficient warehouse management lies at the heart of streamlined operations for businesses grappling with the challenge of optimal storage solutions. The selection of the right racking system plays a pivotal role in determining the effectiveness of a warehouse’s storage capacity, accessibility, and overall productivity. In the dynamic landscape of warehousing, two key storage systems—Drive-In Racking and Pallet Flow Racking—stand out as versatile options, each catering to distinct needs and preferences.

Drive-In Racking

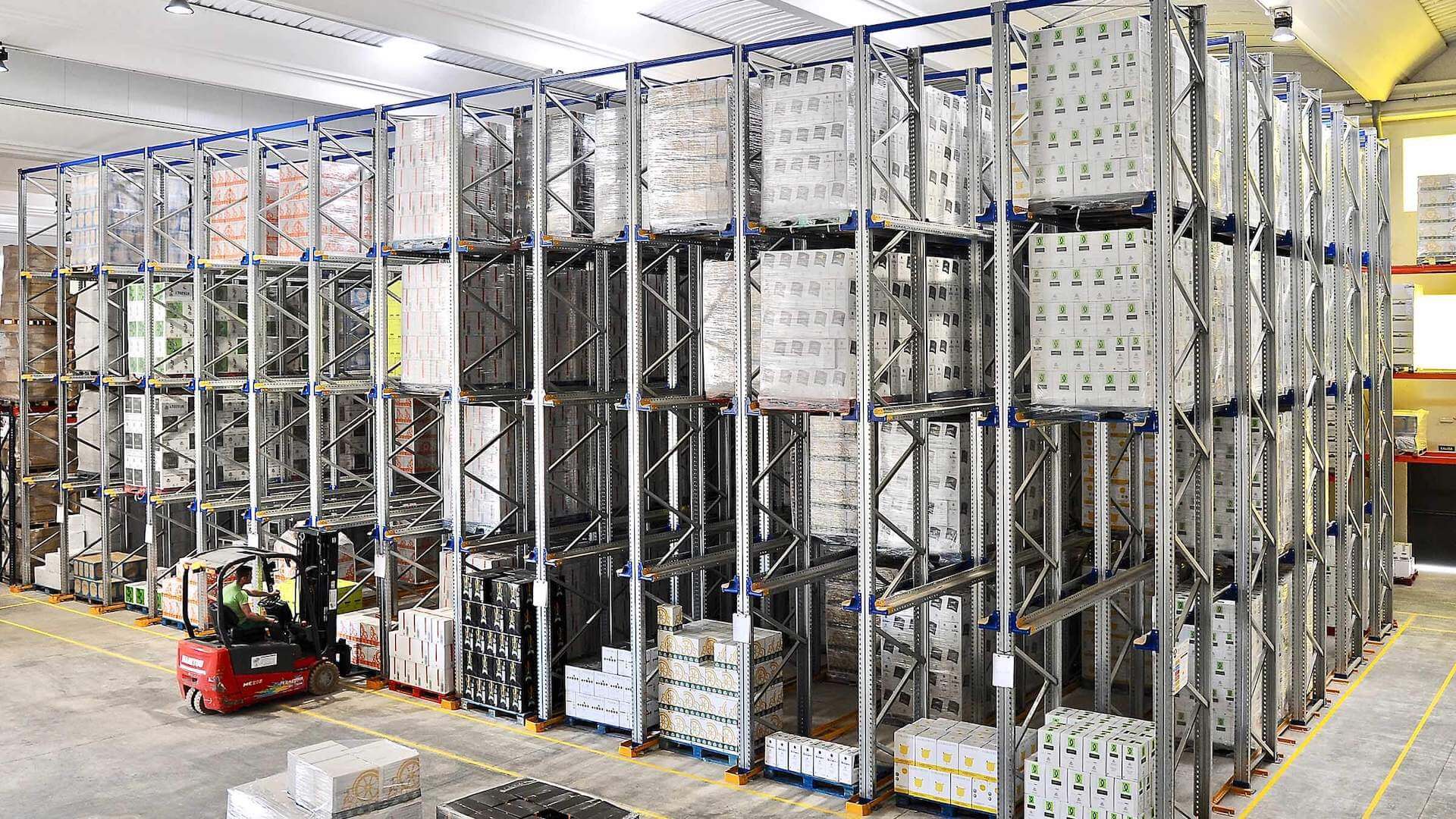

Drive-In Racking stands as a high-density storage solution designed to maximize available space and height in a warehouse by minimizing forklift operating aisles. Comprising an easy-to-assemble modular structure, this compact racking system is versatile and straightforward, facilitating both installation and reconfiguration.

The Drive-In Racking system operates on the principle of Last In, First Out (LIFO) stock management. It features either Drive-In Racking with a single access aisle or Drive-Thru Racking with entrance and exit points. In the Drive-In configuration, the forklift enters a single aisle to load or unload pallets, while in Drive-Thru, forklifts have access from both ends.

Advantages

• Space Optimization: Drive-In Racking stands out for its ability to maximize space utilization, exceeding 80%. This makes it an ideal choice for warehouses dealing with limited available space.

• Cost-Effective: The system proves to be cost-effective with its low maintenance and assembly costs, contributing to overall affordability.

• Compatibility: The structure of Drive-In Racking is designed to be compatible with other storage systems, enhancing its adaptability to various warehouse setups.

• Maximum Performance: With utilization rates surpassing 80% of the available space, Drive-In Racking provides excellent stock control, ensuring efficient use of the warehouse.

• Logistics Management: The system enables well-organized logistics management, offering full control over inventories, traffic flow, and overall warehouse operations.

• Flexibility: Designed for quick reconfiguration, Drive-In Racking allows for extension or changes as needed, providing a flexible solution for evolving warehouse needs.

Disadvantages

• Low Selectivity: One of the drawbacks of Drive-In Racking is its limited selectivity of stored loads compared to other storage systems. Direct access may be compromised.

• Perishable Product Limitations: The system may not be ideal for products with a high turnover, particularly in environments where material turnover is low, impacting its suitability for perishable goods.

Applications

Drive-In Racking finds its ideal application in scenarios where space utilization takes precedence over selectivity. It is commonly used in warehouses with reduced space, storing homogeneous products with a large number of pallets of the same reference, and in situations where direct access to unit loads is not a critical requirement.

Components and Accessories

1. Upper Longitudinal Beam: Joins frames in the upper area to secure the structure.

2. Horizontal Brace: Reinforces the compact structure and is located at the top.

3. Frame: Basic elements consisting of uprights, diagonals, baseplates, and fixing elements.

4. Forklift Guide Rail: Steel rail at floor level to guide forklifts and protect against impacts.

5. Frame and Upright Protection: Protects the installation from possible damage due to impacts.

6. Welded Baseplate: Especially designed for frames with the highest load and height.

7. Upright or Column: The main element of the frame, available in various sections and lengths.

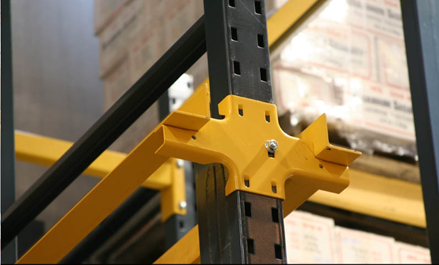

8. Pallet Guidance: Aids operators when depositing unit loads and protects against potential impacts.

9. Pallet Beam or Support Rail: Horizontal profiles supporting pallets on each level.

10. Bracket: Metal components supporting support rails or pallet beams.

11. Pallet Backstop: Preventive safety backstops to prevent pallets from falling at the back of the aisle.

In the ever-evolving landscape of warehousing, Drive-In Racking stands as a formidable solution, offering a balance between efficient space utilization and controlled stock management. As we delve further into the comparison with Pallet Flow Racking and Selective Racking, readers will gain a comprehensive understanding of the distinctive features that set each system apart.

Pallet Flow Racking

Pallet Flow Racking represents a dynamic and efficient high-density storage solution designed to maximize warehouse space while ensuring streamlined accessibility to products. Unlike static systems, pallet flow relies on the principle of gravity, with pallets moving from the back to the front of the rack as they are retrieved and restocked.

In the Pallet Flow Racking system, pallets are loaded from the back of the rack, and as one pallet is removed from the front, the next pallet moves forward to take its place. This continuous flow system operates on a First In, First Out (FIFO) basis, making it ideal for products with expiration dates or high turnover.

Advantages

• Space Efficiency: Pallet Flow Racking excels in maximizing the cubic space available by minimizing the operating aisles required for trucks. This optimization contributes to the efficient utilization of warehouse space.

• Continuous Flow: Operating on a First-In-First-Out (FIFO) basis ensures efficient stock rotation, making it particularly suitable for items with expiration dates or high turnover.

• Versatility: The system showcases compatibility with various pallet sizes and types, offering versatility to accommodate diverse storage needs.

• Adaptability: An advantageous feature of Pallet Flow Racking is its adaptability. It allows for the retrofitting of almost any static pallet rack system for pallet flow, providing businesses with flexibility in upgrading their storage solutions.

• Extended Lane Lengths: Pallet Flow Racking stands out by allowing longer lanes compared to some other high-density systems. This extended length contributes to enhanced space efficiency and streamlined warehouse operations.

• Low Energy Consumption: The system promotes energy efficiency by minimizing forklift travel distances, contributing to lower energy consumption and operational costs.

Disadvantages

• Initial Investment: Pallet Flow Racking may entail a higher initial investment compared to some traditional storage systems. Businesses need to weigh the long-term benefits against the upfront costs.

• Complexity: Proper planning and design are crucial for the effective implementation of Pallet Flow Racking. The system’s flow dynamics require careful consideration to ensure seamless operations.

• Less Suitable for Slow-Moving Items: While efficient for items with high turnover, Pallet Flow Racking may not be the most suitable solution for slow-moving items or those with low turnover rates.

Comparison with Drive-In Racking

In contrast to Drive-In Racking, Pallet Flow Racking operates on a FIFO basis, emphasizing advantages for products with expiration dates or high turnover. Notably, it allows for longer lane lengths, providing enhanced space efficiency compared to Drive-In Racking. While Drive-In Racking proves suitable for low-rotation loads, Pallet Flow Racking excels in scenarios requiring continuous stock rotation.

Components and Accessories

• Pallet Flow Rails: These are the essential components facilitating the smooth flow of pallets within the system.

• Brakes: Built-in brakes play a crucial role in controlling the speed of pallets, ensuring smooth and controlled movement for enhanced safety and efficiency.

• Lane Dividers: These components are employed to separate pallet lanes, preventing interference between loads and maintaining organized flow.

• Entry Guides: Entry guides assist in guiding pallets smoothly into the flow lanes, contributing to the overall efficiency of the Pallet Flow Racking system.

• Quality and Security: Pallet Flow Racking adheres to stringent safety standards, ensuring secure and reliable operations. The continuous testing and analysis conducted in research and testing laboratories contribute to the system’s reliability and effectiveness.

Pallet Flow Racking emerges as a dynamic solution catering to the demands of high-turnover products and time-sensitive inventory management. As we proceed to compare it with Drive-In Racking and Selective Racking, a comprehensive understanding of the strengths and considerations of each system will unfold, aiding businesses in making informed choices for their unique warehousing needs.

Comparison Between Drive-In And Pallet Flow Rack

As businesses strive to optimize their warehouse storage, the choice between Drive-In Racking and Pallet Flow Racking becomes a critical decision. Each system comes with its unique set of features, advantages, and considerations, catering to specific operational needs. Let’s embark on a comprehensive comparison to unravel the strengths and distinctions of each storage solution.

1. Space Utilization:

• Drive-In Racking: Excels in maximizing space utilization, reaching over 80% efficiency. Ideal for warehouses with limited floor space.

• Pallet Flow Racking: Maximizes cubic space by utilizing gravity for continuous flow. Offers longer lane lengths compared to some other high-density systems.

2. Stock Management:

• Drive-In Racking: Operates on a Last In, First Out (LIFO) basis, suitable for low-rotation loads with limited material turnover.

• Pallet Flow Racking: Functions on a First In, First Out (FIFO) basis, making it ideal for products with expiration dates or high turnover.

3. Accessibility:

• Drive-In Racking: Limited selectivity but compensates with high space optimization.

• Pallet Flow Racking: Offers direct access to each pallet, enhancing selectivity.

4. Adaptability:

• Drive-In Racking: Compatible with various pallet sizes but may have limitations in adaptability.

• Pallet Flow Racking: Versatile, allowing retrofitting into existing static pallet rack systems.

5. Efficiency in Stock      Retrieval:

• Drive-In Racking: Requires forklifts to enter a single aisle for loading or unloading.

• Pallet Flow Racking: Facilitates continuous flow, minimizing forklift travel distances and energy consumption.

6. Cost Considerations:

• Drive-In Racking: Low maintenance and assembly costs, making it a cost-effective solution.

• Pallet Flow Racking: Initial investment may be higher, but energy-efficient design contributes to long-term savings.

7. Ideal Applications:

• Drive-In Racking: Warehouses with reduced space, low material turnover, and a need for high space optimization.

• Pallet Flow Racking: Businesses with high-turnover products, time-sensitive inventory, and a focus on space efficiency.

8. Versatility:

• Drive-In Racking: Limited selectivity but excels in high-density storage.

• Pallet Flow Racking: Adaptable and suitable for retrofitting into existing systems.

In the dynamic landscape of warehousing, the choice between Drive-In and Pallet Flow ultimately depends on the unique needs and priorities of each business. By understanding the distinctive features and trade-offs associated with each system, businesses can make informed decisions to optimize their warehouse spaces, enhance productivity, and meet the demands of their specific inventory management requirements.
